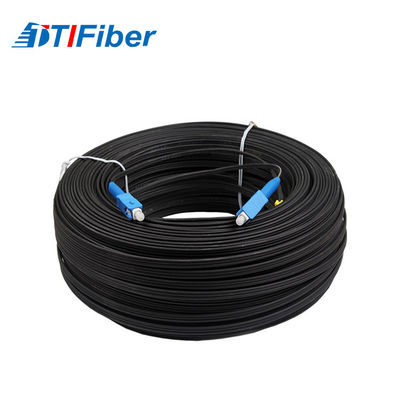

Simplex FTTH Drop Cable SC/UPC Optical Fiber Patch Cord With Black/ White LSZH Jacket
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | TTI |
| Certification: | ISO, CE |
| Model Number: | FTTH-1C-SC |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | in pp bag then in carton |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T, , paypal |
| Supply Ability: | 8000pcs/day |
|
Detail Information |
|||
| Fiber: | Singlemode 9/125 | Color: | Black, White |
|---|---|---|---|
| Connector: | SC/UPC | Length: | 1,2,3 Or 5m As Customer's Request |
| Highlight: | multimode fiber patch cord,fiber optical cable |
||
Product Description
Simplex FTTH Drop Cable SC / UPC Optical Fiber Patch Cord With Black / White LSZH Jacket
Description:
1. Mode: OS1
2. Core: Simplex,
3. Insertion Loss: ≤0.2 dB
4. Return Loss: ≥50dB
5. Exchangeability: ≤0.2dB
6. Repeatability: ≤0.2dB/1000times
7. Operation Wavelenghth: 850nm,1310nm,1550nm
8. Operating Temperature: -30 °C ~ +75 °C
9. Storage Temperature: -40 °C ~ +85 °C
10. Cable OD: 2.0x3.0mm
11. Cable Material: OFNR,LSZH&Polarization maintaining
Features:
Low insertion loss, high return loss
High credibility and stability
High dense connection, easy for operation
Good in repeatability and exchangeability
Application:
LAN/CATV
Telecommunication
Optical appliances connection
Communication equipment rooms, FTTX
Specification:
| Item | Single mode | Multi mode | |
| Splicing Type | UPC | APC | PC |
| Insertion Loss | <=0.3dB | <=0.2dB | <=0.3dB |
| Reture Loss | >=45dB | >=55dB | >=35dB |
| Repeatability | <=0.1dB | <=0.1dB | <=0.1dB |
| Temperature | -40/+80°C | ||
Ordering Information
| Connector | Fiber Core | Cable Diameter | Fiber Type | Polishing | Cable Jacket | Cable Color | Fiber Length |
|
LC SC FC ST D4 MU DIN SMA MPO MTRJ |
Simplex Duplex |
0.9mm 2.0mm 3.0mm |
SM:9/125um MM:50/125um MM:62.5/125um OM3 |
PC UPC APC |
PVC LSZH |
Yellow Orange Aqua others |
1M 2M 3M
10M 20M 30M
|
Shipping :
1. We will shipped the parcel in 3-5 days after you made payment.
2. Delivery time:
1) Transportation developed countries is about 7-10 days.
2) Remote countries is about 2weeks.
