GCYFXTY Central Bundle Tube Type Micro Air Blown Micro Fiber Optic Cable
Product Details:
| Place of Origin: | China |
| Brand Name: | TTI |
| Certification: | ISO9001 |
| Model Number: | GCYFXY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50KM |
|---|---|
| Price: | 198 |
| Packaging Details: | 4KM/Drum |
| Delivery Time: | 7-15DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000KM |
|
Detail Information |
|||
| Name: | Micro Fiber Optic Cable | Type: | GCYXTY |
|---|---|---|---|
| Brand: | OEM | Use: | FTTH |
| Cores: | 24 | Loose Tube: | PBT |
| Fiber Type: | Fiber Type | ||
| Highlight: | GCYFXTY Micro Fiber Optic Cable |
||
Product Description

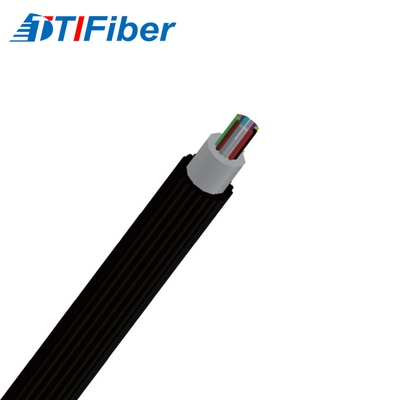

Central Bundle Tube Type Micro Air Blown Micro GCYFXTY Fiber Optic Cable

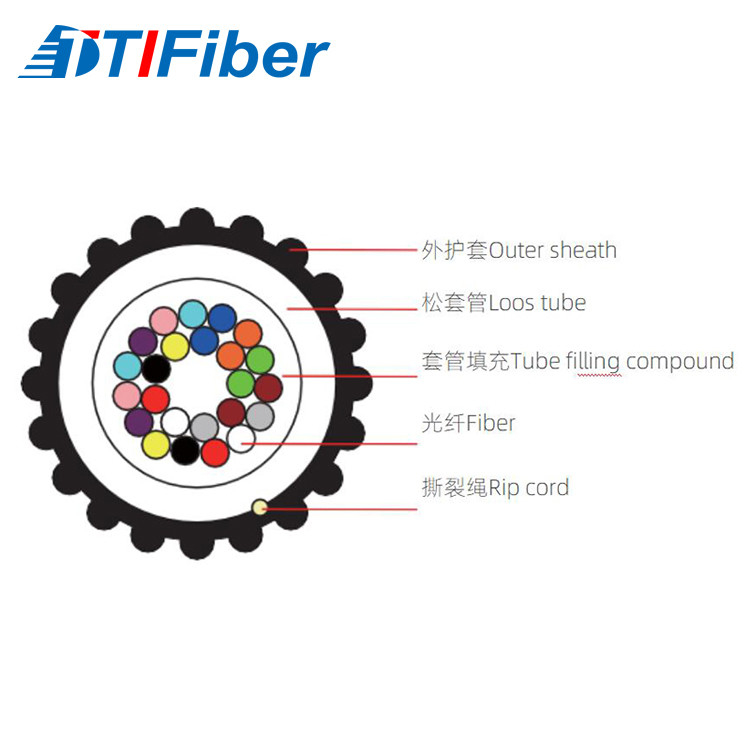

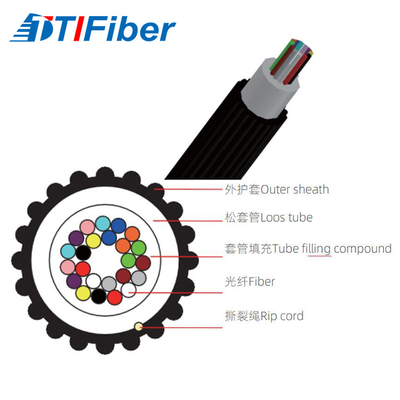

GCYFXTY The central tube type air blown micro cable is formed by putting the optical fiber into the loose
tube made of high modulus material, filling the loose tube with non-toxic and harmless waterproof
compound, placing the reinforcing element aramid outside the loose tube as required, and then extruding
the sheath with low friction coefficient.
tube made of high modulus material, filling the loose tube with non-toxic and harmless waterproof
compound, placing the reinforcing element aramid outside the loose tube as required, and then extruding
the sheath with low friction coefficient.
Features
① The optical fiber cable has the advantages of small si e, light weight, moderate soft and hard, easy bending during air blowing laying and convenient operation.
② All non-metallic structure without grounding.
③ The micro cable can be blown out to facilitate the replacement of new varieties of optical fibers and cables in the future.
④ Good crush resistangce and flexibility.
① The optical fiber cable has the advantages of small si e, light weight, moderate soft and hard, easy bending during air blowing laying and convenient operation.
② All non-metallic structure without grounding.
③ The micro cable can be blown out to facilitate the replacement of new varieties of optical fibers and cables in the future.
④ Good crush resistangce and flexibility.
Optical Characteristics
|
Item |
G.652 |
G.655 |
50/125um |
62.5/125um |
|
|
Attenuation |
@850nm |
|
|
≤3.0dB/km |
≤3.2dB/km |
|
@1300nm |
|
|
≤1.0dB/km |
≤1.2dB/km |
|
|
@1310nm |
≤0.36dB/km |
≤0.40dB/km |
|
|
|
|
@1550nm |
≤0.22dB/km |
≤0.23dB/km |
|
|
|
|
Bandwidth |
@850nm |
|
|
≥500MHZ.km |
≥200MHZ.km |
|
@1300nm |
|
|
≥1000MHZ.km |
≥600MHZ.km |
|
|
Numerical aperture |
|
|
0.200±0.015NA |
0.275±0.015NA |
|
|
Cable cut-off wavelength |
≤1260mm |
≤1450mm |
|
|
|
Structural Parameters
|
Cable Type |
Fiber Count |
Diameter (mm) |
Weight (kg/km) |
Tensile strength Long/Short term (N) |
Crush resistance Long/Short term (N/100mm) |
|
GCYFTY |
2~12 |
2.5 |
5 |
0.15G/0.5G |
150/450 |
|
GCYFTY |
14~24 |
3.0 |
7 |
0.15G/0.5G |
150/450 |
Environmental Characteristics
Operating temperature / -40~+70℃
Storage temperature / -40~+70℃
