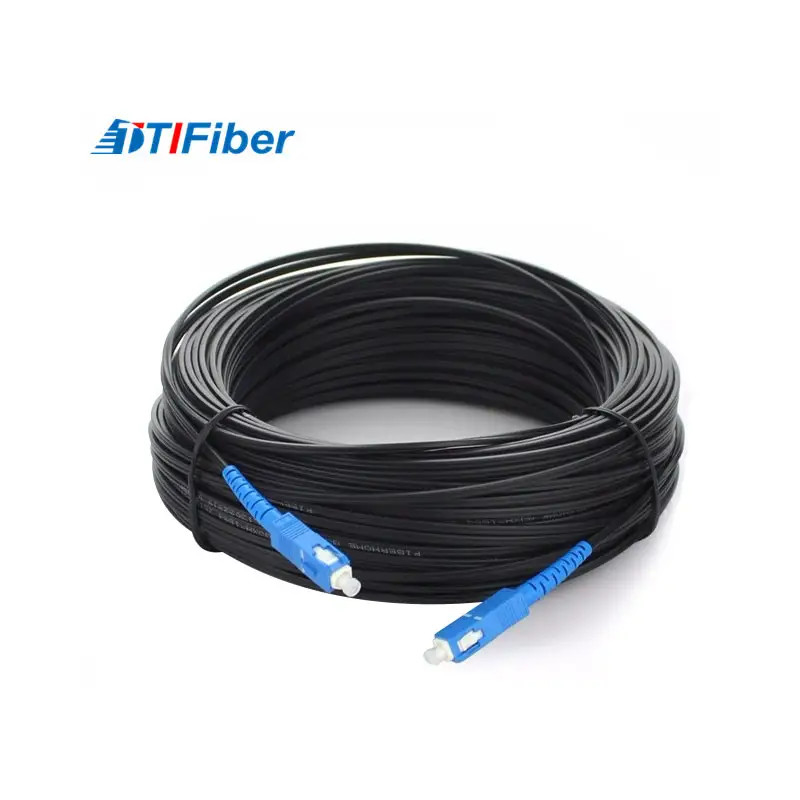

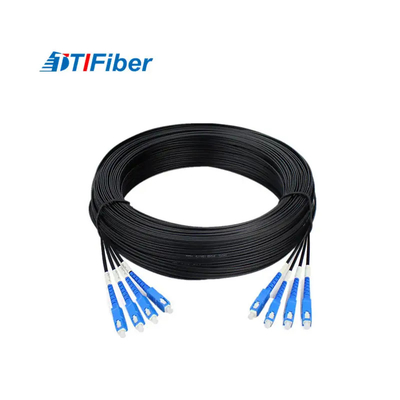

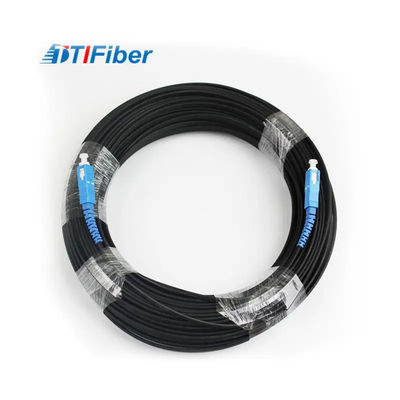

100m FTTH Drop Cable With LC SC Connector Outdoor Fiber Optic Patch Cord
Product Details:
| Place of Origin: | China, Guangdong |
| Brand Name: | TTIFIBER/OEM/ODM |
| Certification: | CE, RoHS, ISO9001 |
| Model Number: | 100m FTTH Drop Cable |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Package(Surport OEM/ODM) |
| Delivery Time: | 3-20 working Days after received the payment |
| Payment Terms: | T/T, L/C, PayPal, Western Union |
| Supply Ability: | 10000PCS/Day |
|
Detail Information |
|||
| Name: | Fiber Optic Patch Cord | Connector: | LC SC FC ST |
|---|---|---|---|
| Cable Diameter: | 2.0mm / 3.0 Mm | Cable Quantity: | Simplex / Duplex /Multiplex |
| Ferrule End Face: | APC UPC | Cable Type: | PVC LSZH |
| Package: | PE Bag Or Wooden Drum | Cable Length: | Customized |
| Highlight: | 100m FTTH Drop Cable,Outdoor Fiber Optic Patch Cord,LC SC Connector Patch Cord |
||
Product Description
Description of fiber optic patch cord
A fiber optic patch cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch or other telecommunication equipment. Its thick layer of protection is used to connect the optical transmitter, receiver, and the terminal box. This is known as "interconnect-style cabling".
Feasure of fiber optic patch cord
1) Low insertion loss high return loss
2)Excellent mechanical endurance
3)High credibility and stability
4)Good in repeatability and exchangeability
Application of fiber optic patch cord
1) Fiber optic communication networks
2) Optical access network
3) Data processing networks
4)Premise installations
Specification of fiber optic patch cord
| Item | Unit | FC,SC,ST/PC | FC,SC,ST/UPC | FC,SC,ST/APC |
| Insertion Loss | dB | ≤0.20 | ≤0.20 | ≤0.30 |
| Repeatability | dB | ≤0.10 | ||
| Exchangeability | dB | ≤0.20 | ||
| Return Loss | dB | ≥45(SM) | ≥50(SM) | ≥60(SM) |
| Fiber Type | Corning SMF-28TM, 9/125um (SM), 50/125um or 62.5/125um(MM) | |||
| Operating Temperature | °C | -40~+70 | ||
| Storage Temperature | °C | -40~+70 | ||
| Durability | time | >1000 times | ||
