GYTA G652D Singlemode Fiber Optical Cable Outdoor Armored 700M
Product Details:
| Place of Origin: | China |
| Brand Name: | TTIFIBER |
| Certification: | ISO,CE,CPR,ANATEL |
| Model Number: | GYTA |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Drum |
| Delivery Time: | Depend on qty, 3-20 working Days after received the payment |
| Payment Terms: | T/T, L/C, PayPal, Western Union |
| Supply Ability: | 1000KM/M |
|
Detail Information |
|||
| Color: | Black, Usually Black Color, Blue Or Others, Aqua, Yellow | Material: | Available Upon Customer's Request, PVC |
|---|---|---|---|
| Fiber Type: | G652D, G657A2, Single Mode Or Multi Mode, G657, Single Mode Fiber | Application: | FTTH, OUTDOOR, Aerial, Armored Outdoor Optic Fiber Cable, Audio Signal Transmission |
| Certification: | ISO9001, ROHS, CE, CE And ROHS, ISO9001/CE/ROHS | Number Of Conductors: | ≥ 12 |
| Type: | Coaxial, FTTH 24 Core Optical Fiber Cable, Professional Manufactures Fiber Optic Sma Connector, Bare Optical Fiber, Single-Mode Or Multi-Mode | Product Name: | Fiber Optic Launch Cable, Ftth Drop Cable, 2core FTTH Single Mode Indoor/outdoor Fiber Optic, Armored 2 Core Field Optical Fiber Cable Assembly For Field Operation, 1 2 4 Core Fiber Optic Drop Cable |
| Fiber Count: | 2 Core, 2/4/6/8/12 Core, 1-144 Core, 1 Cores, 1/2/4 Core | Length: | 700M Or As Your Required, 61m, 500m, 2KM |
| Jacket Material: | LSZH, PVC, PE, TPU, PVC/LSZH | Operating Temperature: | -55~+85°C, -20℃ To 70℃, -40°C To + 70°C |
| Package: | Plastic Bag, Carton, 1km/roll | Sheath: | MDPE/HDPE, PLENUM, LSZH, PVC, Ect |
| Cable Diameter: | 0.25MM, 2.2±0.07 | Strength Member: | Steel Wire, Metallic Wire, FRP |
| Name: | Ftth Drop Cable Outdoor Fiber Optical Cable, Fiber Optic Patchcord | Strengthen Member: | FRP Or Steel 0.4mm/0.45mm/0.5mm, 1 Steel Wire+ 2 FRP |
| Highlight: | GYTA Fiber Optical Cable,G652D Fiber Optical Cable,700M Fiber Optic Cable |
||
Product Description

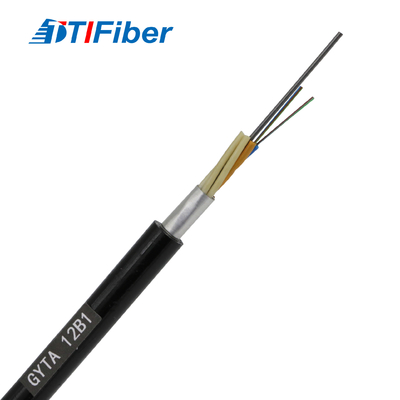

Outdoor Armored GYTA G652D Singlemode Fiber Optical Cable
Description

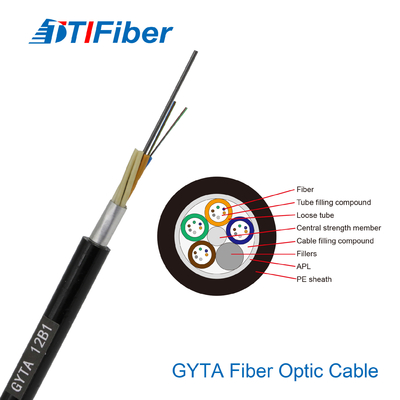

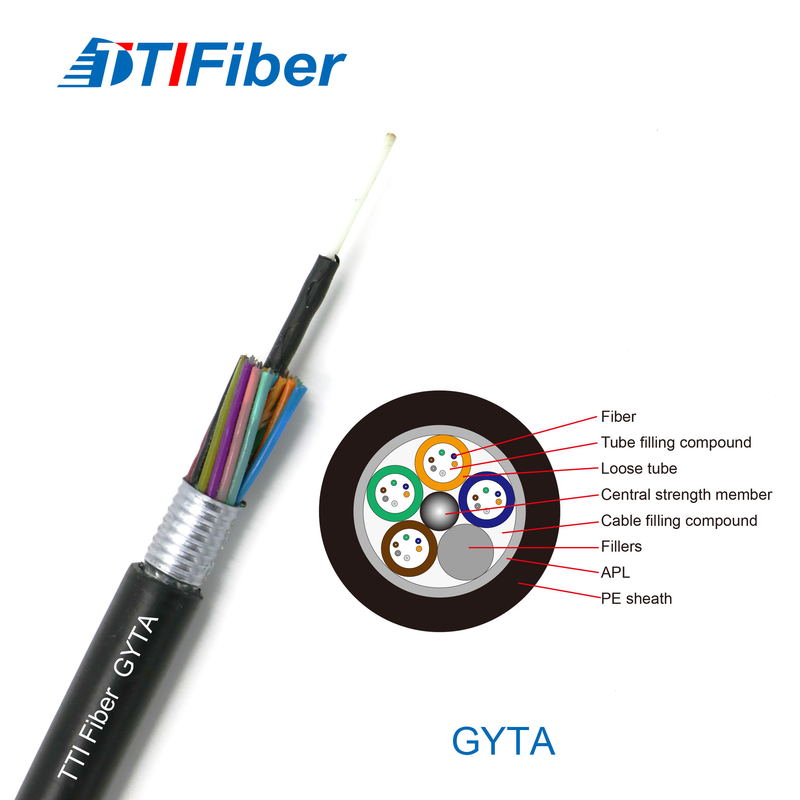

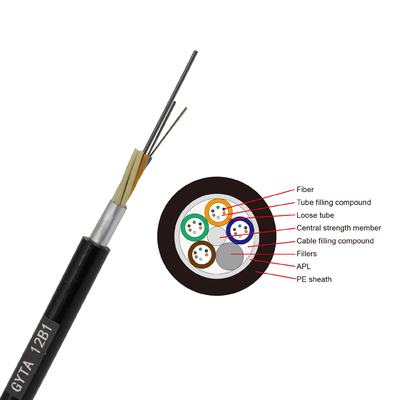

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.
Features:
-Good mechanical and temperature performance
-High strength loose tube that is hydrolysis resistant
-Special tube filling compound ensure a critical protection of fiber
-Crush resistance and flexibility
-The following measures are taken to ensure the cable watertight
-Steel wire used as the central strength member
-Loose tube filling compound
-100% cable core filling
-APL moisture barrier
-PSP enhancing moisture-proof
-Water-blocking material
Technical data
| Fiber Num. | Outer diameter (mm) | Weight (kg/km) | Tension (N) | Crash loading (N/100mm) | ||
| Short term | Long term | Short term | Long term | |||
| 2-30 | 12.9 | 160 | 3000 | 1000 | 3000 | 1000 |
| 32-60 | 13.4 | 175 | ||||
| 62-72 | 14.1 | 204 | ||||
| 74-84 | 15.4 | 245 | ||||
| 86-96 | 15.4 | 245 | ||||
| 98-120 | 17.2 | 285 | ||||
| 122-144 | 19 | 334 | ||||
Performance
Application : Used for long haul communication and local network
Installation method : burial and duct
Operating temperature : -40°C ~ +70°C
Permisson bent radius Static :12.5 times O.D.
Dynamic :25 times O.D.
