Simplex Duplex Patch Cord UPC APC Singlemode Multimode
Product Details:
| Place of Origin: | China Mainland |
| Brand Name: | TTIFIBER/OEM/ODM |
| Certification: | CE, RoHS, ISO9001 |
| Model Number: | SC/APC-LC/APC SM SX |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1PCS/PE Bag |
| Delivery Time: | Depend on qty, 3-20 working Days after received the payment |
| Payment Terms: | T/T, L/C, PayPal, Western Union |
| Supply Ability: | 7000pcs/Day |
|
Detail Information |
|||
| Connector: | SC, LC, ST, FC, MPO, MTP, E2000 Etc. | Ferrule End -face: | PC, UPC, APC |
|---|---|---|---|
| Jacket: | PVC, LSZH, OFNP, OFNR | Inner: | Ceramic |
| Cable Length: | 1M; 2M; 3M Etc., Or Customized | Cable Diameter: | 0.9mm,2.0mm Or 3.0mm |
| Fiber Type: | Simplex And Duplex, G652D, G655 | Insertion Loss: | ≤0.3dB |
| Material: | PVC, LSZH, PVC/LSZH | Color: | Yellow, Orange Or Others, Aqua Or Customized |
| Type: | Single Mode/Multi-mode | Fiber Count: | Simplex/Duplex |
| OEM/ODM: | Available | ||
| Highlight: | Singlemode Patch Cord UPC APC,Simplex Patch Cord UPC APC,Duplex Patch Cord UPC APC |
||
Product Description
Singlemode/Multimode Simplex/Duplex SC/FC/LC/ST/MTRJ/MU/DIN UPC APC Connector Fiber Optic Patch Cord
1. Description
Fiber optic patch cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch, or other telecommunication equipment.
Having a thick layer of protection, it is used to connect the optical transmitter, receiver, and the terminal box. This is known as "interconnect-style cabling".
2. Specification
| Product Name | Fiber optic patch cable |
| Connectors | LC, SC, ST, FC, MU, DIN, D4, MPO, SC/APC, FC/APC, LC/APC, MU/APC |
| Fiber |
Singlemode/Multimode 50/125, 62.5/125 (Multimode) OM2&OM1 50/125, 10G (Multimode) OM3 |
| Cable |
Simplex, Duplex Φ3.0mm, Φ2.0mm, Φ0.9mm PVC or LSZH |
| Polishing Manner | UPC,SPC,APC (8°& 6°) |
| Insertion Loss |
≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750 |
|
Return Loss (Singlemode) |
UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750 |
| Repeatability | ±0.1dB |
| Operating temperature | -400C to 850C |
|
Geometry Requirement ( Singlemode) |
Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1 |
3. Product list
| Boot | Connector | Fiber Type | Cable number | Ferrule | Connector |
|
0.9mm 2.0mm 3.0mm |
LC FC SC ST MU D4 MTRJ MPO DIN
|
9/125um SM 50/125um MM 62.5/125um MM OM3 OM4 |
Simplex Duplex Multi-fiber Ribbon |
PC APC UPC |
1M 2M 3M4M 5M ......... Customized |
4. Features
1). Low Insertion loss
2). High return loss
3). Good Repeatability
4). Good Interchange
5). Excellent Environmental Adaptability
5. Application
1). Communication rooms
2). FTTH (Fiber to The Home)
3). LAN (Local Area Network)
4). FOS (fiber optic sensor)
5). Fiber Optic Communication System
6). Optical fiber connected and transmitted equipment
7). Defense combat readiness

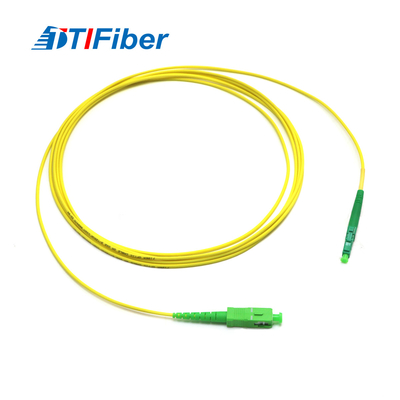

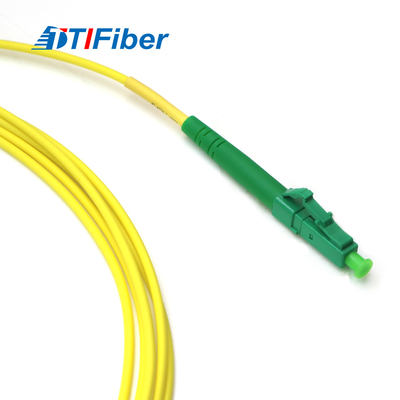

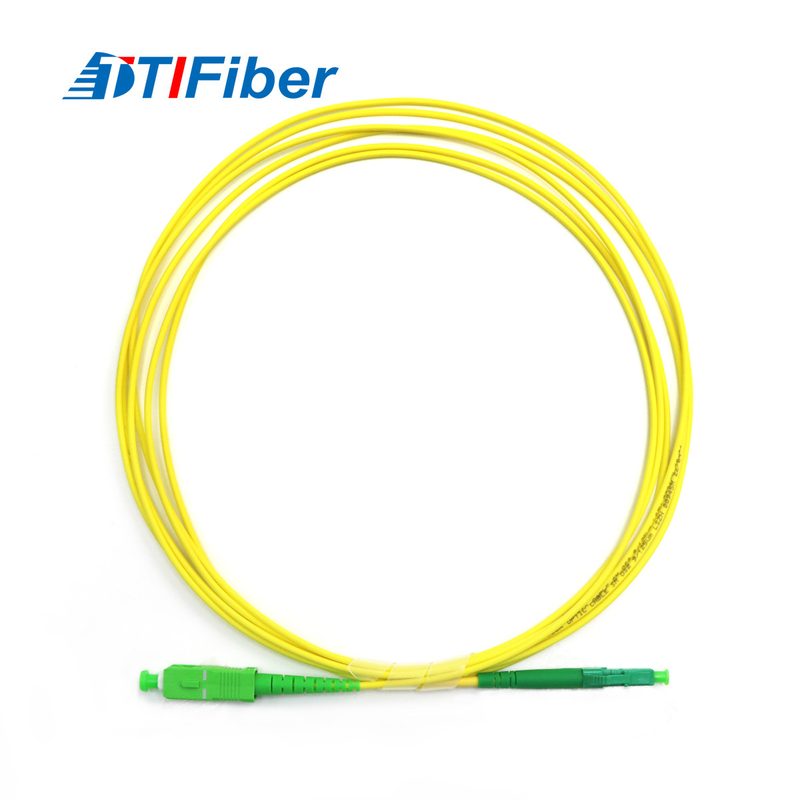

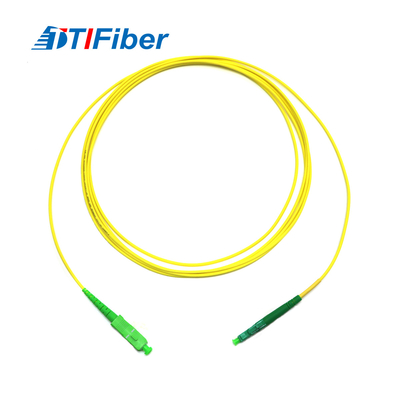

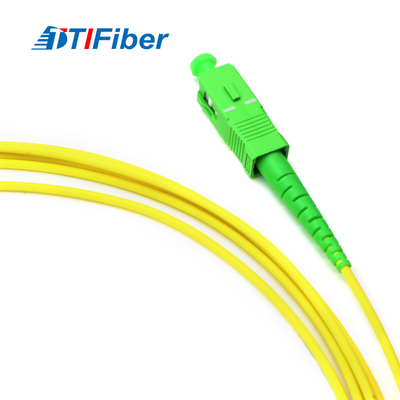

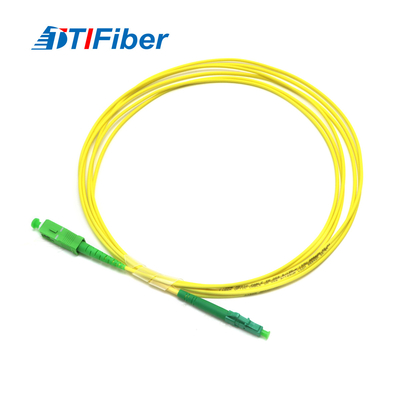

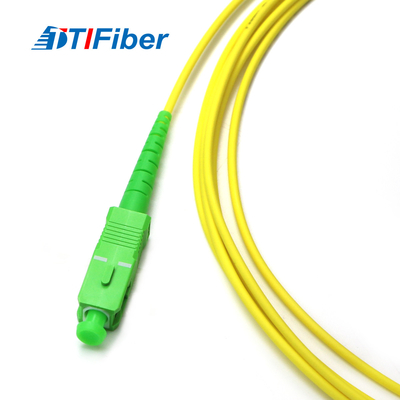

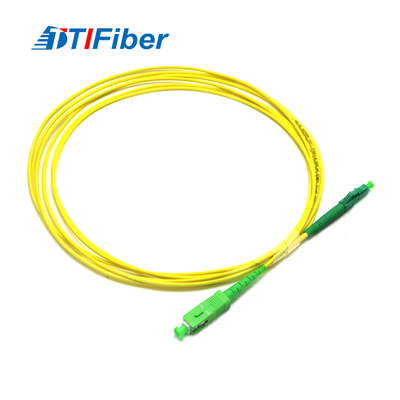

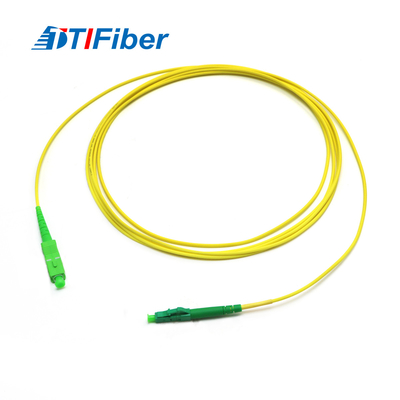

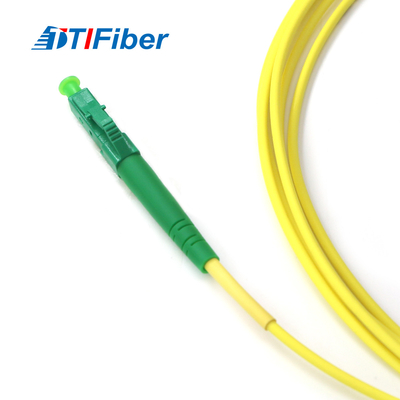

6. Product pictures:
Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
7. FAQ:
1, Free samples -- we can supply free products for testing
2, Brand --FOC/OEM/ODM service are acceptable
3, Quality Level --High quality as per your requirements
4, Competitive price --We have our own factory,Competitive price can be provided
5, Payment terms --Nice payment. Like T/T, Paypal, LC etc
6, Shipping way --By Sea,By Air or By Express(DHL,Fedex,UPS,EMS etc)
7, Delivery Time --Usually 3-5 days,Less than a week.
