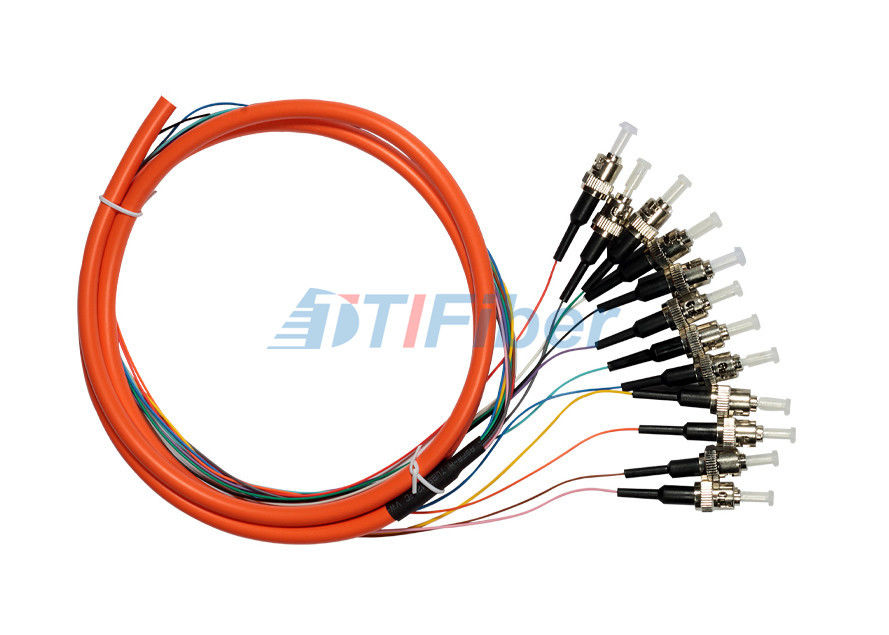

Fiber Optic Pigtail Multimode ST UPC for Fiber Patch Panel and Fiber Adapter
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | TTI |
| Certification: | ROHS, SGS, ISO9001 |
| Model Number: | FP-ST |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1PCS/PE Bag |
| Delivery Time: | 3-5days |
| Payment Terms: | T/T, , Monthly settlement |
| Supply Ability: | 7000pcs/Day |
|
Detail Information |
|||
| Model Name: | Fiber Optic Pigtail | Connector Type: | SC FC ST LC MU MTRJ MPO D4 SMA... |
|---|---|---|---|
| Fiber Mode: | Singlemode, Multimode | Fiber Count: | 2,4,6,8~144cores |
| Cable Type: | PVC LSZH OFRR OFNP | Fan-out: | 0.9mm 1.5meters Orange |
| Highlight: | single mode pigtail,pigtail fibra optical |
||
Product Description
Fiber Optic Pigtail Multimode ST UPC for Fiber Patch Panel and Fiber Adapter
Features:
-Simplex and Duplex assemblies available
-PC, UPC polishing available
-PVC and LSZH outer sheath.
-0.9mm, 2.0mm and 3.0mm cable size.
-Hybrid patch cords are available upon request
-Fan-out available (Ribbon type / bundle type)
Applications:
-Telecommunication networks
-ODF of optical transmission systems
-FTTX applications
-Data transmission networks
-Interconnection of fiber optic transmission equipments
Specification:
|
Pigtail Connector |
PC (SM) |
UPC (SM) |
APC (SM) |
MM |
|
Return Loss (dB) |
≥45 |
≥50 |
≥60 |
≥35 |
|
Insertion Loss (dB) |
≤0.2 (max≤0.3) |
|||
|
Repeatability (dB) |
≤0.1 |
|||
|
Durability(1/Matings) |
≥500 |
|||
|
Operation Temperature (°C) |
-25~+70 |
|||
|
Tensile Strength (N) |
≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9 |
|||
|
Fiber |
9/125um, 50/125um,62.5/125um,ect |
|||
|
diameter |
0.9mm 2.0mm, 3.0mm etc |
|||
|
Cable material |
PVC, LSZH |
|||
|
Cores |
Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc |
|||
Ordering Information:
Step 1: Connector Type: FC, SC, LC, , MTRJ, MU, MPO, ST
Step 2: Ferrule End-face: PC, UPC or APC
Step 3: Fiber Type: Single Mode(SM) or Multimode(MM)
Step 4: Cable Core: Simplex or Duplex
Step 5: Cable Diameter: 0.9mm, 2.0mm or 3.0mm
Step 6: Cable Length: 1, 2, 3 meter or customized
Step 7: Cable Type: PVC, LSZH, OFNR, OFNP…
Step 8: Cable color: Yellow, Orange, White, Blue, Green, Red, ...
Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
Our service:
- Standard and customized OEM products from small to large quantity are welcome.
- Compliance with global environmental industry with RoHS and SGS standards.
- All products are 100% fully tested by our technical expertise.
- Our patch cord warranty period is one year.
Packing:
One piece per PE bag with stick label (we could add customer's logo in the label.)
