FTTH 4 Core G657A1 G657A2 Gjyxch Flat Fiber Optic Drop Cable Self Supported
Product Details:
| Place of Origin: | Chinaland |
| Brand Name: | TTI |
| Certification: | CE,ROSH |
| Model Number: | FTTH |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden drum |
| Supply Ability: | 5000 meters per day |
|
Detail Information |
|||
| Color: | Customized | Application: | Telecommunication |
|---|---|---|---|
| Jacket: | LSZH | OEM: | Welcome |
| Certification: | ISO9001 | Product: | Drop Fiber Flat Cable |
| Highlight: | Self Supported Drop Fiber Flat Cable,FTTH Fiber Optic Drop Cable,G657A1 Fiber Optic Drop Cable |
||
Product Description

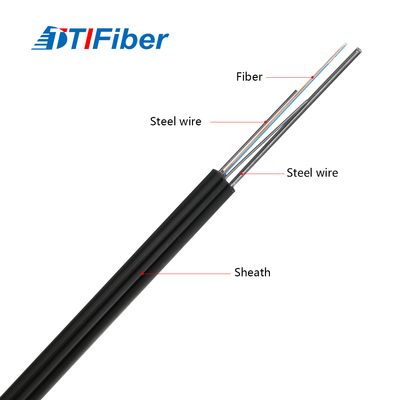

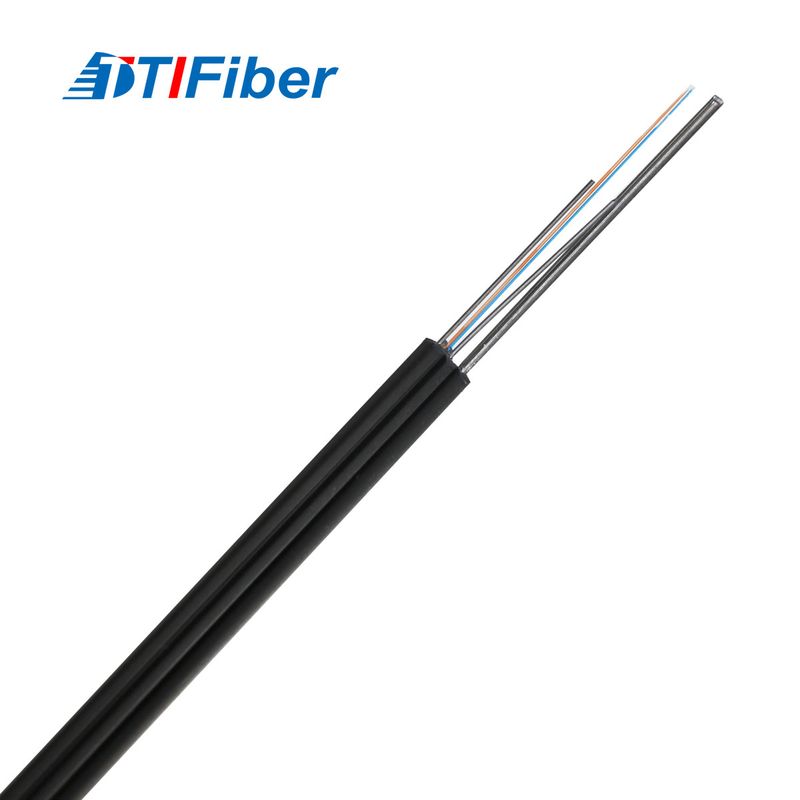

FTTH Outdoor 4 Core G657A1 G657A2 Gjyxch Self-Supported Drop Fiber Flat Cable
Describution:
Fiber optic Drop cables for telecommunication(Bow-type),suitable for optical fiber to the user (FTTH) network ,users to introduce the section of the cable, but also apply to the Office (FTTO) and optical fiber to the building (FTTB) ,and other optical fiber access network users to introduce the section of the optical cable.
FTTH drop cables are good to use for fiber to the home last mile solution, we provide FTTH drop cable with different counts from 1, 2, 4, to 12. This cable adopts the popular design in the industry, its structure and performance is optimized for FTTH applications.
Features:
- Compliant with: ANSI,Bekkcore,TIA/EIA,IEC Strandards
- Simplex and duplex available
- With ceramic fettules
- PVC&LSZH cable option
- Low insertion loss and hight return loss
- Excellent repeatability and changeability
- Optical performance 100% factory test
Application:
- All types of fiber cables with different structures
- High performance optical network operating
- High speed optical routes in buildings (FTTx)
- Application in L band
Cable Construction Parameter:
| Fiber Core | 1 | 2 | 1 | 4 |
| Cable Dimension(mm) | 2.0×5.0 | 2.0×5.0 | 2.0×5.3 | 2.0×5.3 |
| Cable Weight(kg/km) | 9 | 10 | 11 | 12 |
Mechanical & Environmental Performance:
| Max Load (N) | Long Term | 60 | 60 | 60 | 60 |
| Short Term | 120 | 120 | 120 | 120 | |
| Bending Radius(CM) | Dynamic | 30 | |||
| Static | 15 | ||||
