Ftth Low Insertion Loss Fiber Optic Adapter Oem Available Singlemode Multimode
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | TTI |
| Certification: | ROHS, SGS |
| Model Number: | A02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Box |
| Delivery Time: | Depend on qty, 3-20 working Days after received the payment |
| Payment Terms: | T/T, L/C, PayPal |
| Supply Ability: | 10000PCS/Day |
|
Detail Information |
|||
| Brand: | TTI | Product: | Fiber Optic Adapter |
|---|---|---|---|
| Feature: | Low Insertion Loss Value | Application: | Local Area Network |
| Operating Temperature: | -25~75 Degree | -25~75 Degree: | -40~85 Degree |
| Highlight: | Low Insertion Loss Fiber Optic Adapter,Fiber Optic Adapter Oem Available |
||
Product Description

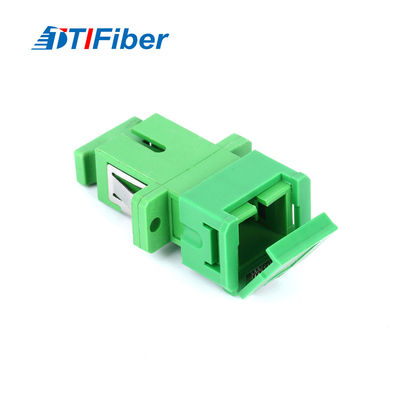

Ftth Singlemode/Multimode Professional Oem Available Low Insertion Loss Fiber Optic Adapter
Quick Details
- Type: SC/UPC
- Mode: Singlemode
- Fiber core: Simplex, Duplex
- Structure: with flange, without flange
- Sleeve: Ceramic sleeve
- Housing: Plastic housing
Description:
Fiber Optic Adapter is the mechanical device designed to align fiber optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.
Features:
- SC used pluggable tight locking structure
- Standardization and Uniformization of Metal Casing
- Zirconia or Bronze Sleeve
- Low Insertion Loss, high Return loss
- Precision mechanical dimension
- Good repeatability, interchangeability and environmental stability
Application:
- Equipment Test
- Local Area Network
- Optic instrumentation
- CATV system, Optic LAN
- Telecommunication Networks
- Fiber optic communication network
- Optical Broadband Access Network
Specification:
| Type | SC/FC/ST/LC/MU/MTRJ/MPO |
| Insertion Loss(dB) | SM≤0.2dB, MM≤0.3dB |
| Repeatability(dB) | ≤0.1dB |
| Mechanism Durability(500 cycles, dB) | ≤0.2dB |
| Temperature Range | -40°C-+85°C |
| Material of sleeve | Zirconia or Bronze |
Reliability testing:
| Item | Test Name | Additional Insertion Loss | Additional Return Loss |
| 1 | Mechanical durability | <0.2dB | <5dB |
| 2 | Repeatability | <0.2dB | <5dB |
| 3 | Lock strength | <0.2dB | <5dB |
| 4 | Low strength | <0.2dB | <5dB |
| 5 | High temperature | <0.2dB | <5dB |
| 6 | Steaming | <0.2dB | <5dB |
| 7 | Temperature cycle | <0.2dB | <5dB |
| 8 | Vibration | <0.2dB | <5dB |
| 9 | Drop | <0.2dB | <5dB |
Ordering Information:
SC/UPC-SC/UPC-SM-SX
Step 1: Connector type: FC, SC, LC, ST, MTRJ, MU, MPO
Step 2: Ferrule End-face: PC, UPC, APC
Step 3: Type: Single-mode, Multimode (MM, OM3, OM4)
Step 4: Mode: Simplex, Duplex
Step 5: Sleeve: Ceramic, Bronze
Step 6: Housing material: Plastic, Metal
Packing:
25pcs per PE bag with stick label (we could add customer's logo in the label.)
Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
Our service:
- Standard and customized OEM products from small to large quantity are welcome.
- Compliance with global environmental industry with RoHS and SGS standards.
- All products are 100% fully tested by our technical expertise.
Company Certification&Exhibition Show:
6. About Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
7. FAQ:
1. Why choose TTI FIBER ?
(1) Professional manufacturer: Low MOQ, free samples are available.
(2) Quality assurance: Stable high quality.
(3) Customers solutions: Quick.
(4) Win-Win Price:Save much costs, bring more benefits for customers.
2. Do you accept OEM, ODM?
Yes, we accept them.
3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes, or products.
4. What's the method of shipment?
We accept all shipment, such as Delievery, ocean transport, land transport, airport transport.
