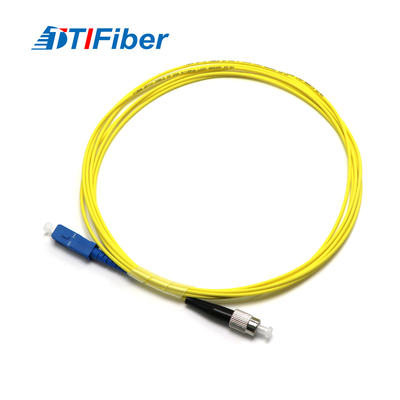

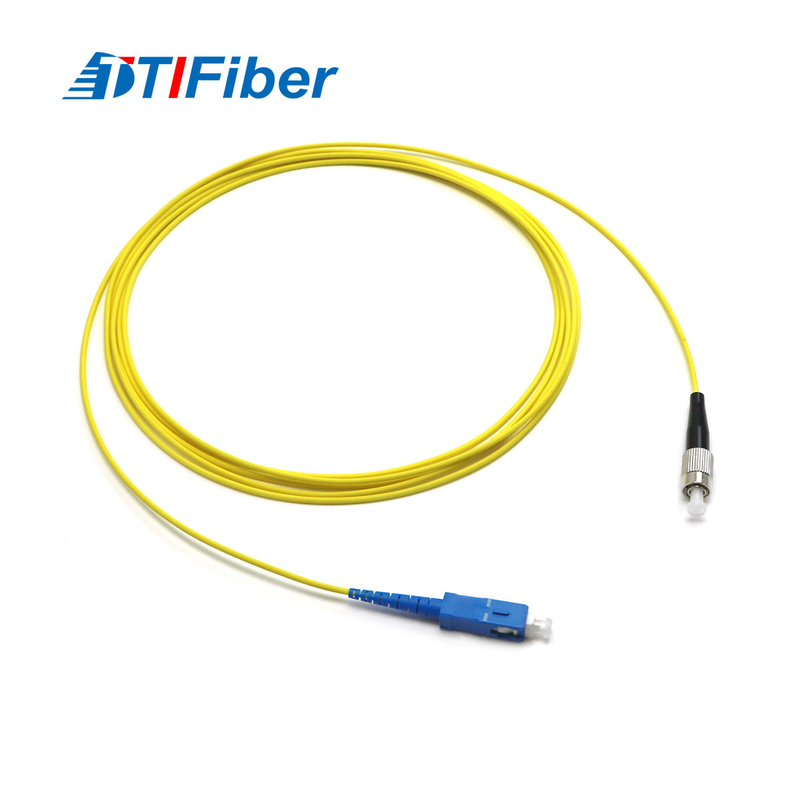

G652D/G657A FC/UPC -SC/UPC SM Singlemode Simplex LSZH Network Fiber Optic Patchcord
Product Details:
| Place of Origin: | China |
| Brand Name: | TTI |
| Certification: | CE,ROHS |
| Model Number: | Fiber Optic patchcord |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Package(Surport OEM/ODM) |
| Delivery Time: | 5-8 Work Days |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pieces |
|
Detail Information |
|||
| Name: | FC/UPC -SC/UPC Simplex Fiber Optic Patchcord | Connector: | FC,LC,SC,ST,MPO,DIN,D4,MU |
|---|---|---|---|
| Diameter: | 0.9mm/2.0mm/3.0mm | Application: | Telecommunication |
| Insertion Loss: | ≤0.2dB | Length: | 1M/3M/5M/10M/Customization |
| Material: | PVC/LSZH | Use: | FTTH/FTTA/FTTX |
| Highlight: | fiber patch cord,fiber patch cord types |
||
Product Description
G652D/G657A FC/UPC -SC/UPC SM Singlemode Simplex LSZH Network Fiber Optic Patchcord
Fiber Optic Patch Cable is also known as fiber optic jumper or fiber optic patch cord. It is composed of a fiber optic cable terminated with different connectors on the ends. Fiber optic patch cables are used in two major application areas: computer work station to outlet and patch panels or optical cross connect distribution center. TTI fiber provides various types of fiber optic patch cables including single-mode, multimode, multi-core, armored patch cables, as well as fiber optic pigtails and other special patch cables. For most of the patch cables, the SC, ST, FC, LC, MU, MTRJ connectors (APC/UPC polish) are all available. In addition, we also have MTP/MPO cables in stock.
1. Feature
(1)Low insertion loss and back reflection loss
(2)Good echangeability
(3)Good Durability
(4)High temperature stability
(5)Standard: Telcordia GR-326-CORE
(2)Optical fiber communication system
(3)Optical fiber test equipment
(4)Optical fiber sensor
(5)Industry and military application
| Range of Mode | Single mode |
| Cable Type | Simplex, Duplex Ziocord. or Multi-cores |
| Connector Style | SC, FC, ST, LC, MTRJ, MU, MPO /MTP.etc |
| Polish or Ferrule Interface Type | PC, UPC, APC |
| Cable Diameter | 0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm |
| Outer Jacket | PVC /LSZH/OFNP |
| Jacket Color | SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5 Lemon Green |
| Durability | 500 cycles(0.2 dB max increase). 1000mate/de mate cycles |
| Operating Temp. | -25℃ to +70℃ |
| Storage Temp. | -40℃ to +85℃ |
Order Information:
| Fiber Optic Patch Cord | |||||
| Connector Type | Ceramic Ferrule End Face |
Cable Diameter (mm) |
Simplex/Duplex | Single mode /Multi-mode |
Length (M) |
| FC | PC/UPC/APC | Φ0.9, Φ2,Φ3 | Simplex/Duplex | SM/MM | Customized |
| SC | PC/UPC/APC | Φ0.9, Φ2,Φ3 | Simplex/Duplex | SM/MM | Customized |
| ST | PC/UPC | Φ0.9, Φ2,Φ3 | Simplex/Duplex | SM/MM | Customized |
| LC | PC/UPC | Φ0.9, Φ2 | Simplex/Duplex | SM/MM | Customized |
| MU | PC/UPC | Φ0.9, Φ2 | Simplex/Duplex | SM/MM | Customized |
| MTRJ | PC/UPC | Φ0.9, Φ2 | Duplex | SM/MM | Customized |
4. Product Details
