Single Sheath Aerial Dielectric Adss Fiber Optic Cable Outdoor Single Mode
Product Details:
| Place of Origin: | China |
| Brand Name: | TTIFIBER |
| Certification: | ISO, CE |
| Model Number: | ADSS |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Drum |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1KM/Drum or Other Package Lengths Customized |
|
Detail Information |
|||
| Color: | Black, Usually Black Color, Blue Or Others, Aqua, Yellow | Material: | Available Upon Customer's Request, PVC |
|---|---|---|---|
| Fiber Type: | G652D, G657A2, Single Mode Or Multi Mode, G657, Single Mode Fiber | Application: | FTTH, OUTDOOR, Aerial, Armored Outdoor Optic Fiber Cable, Audio Signal Transmission |
| Certification: | ISO9001, ROHS, CE, CE And ROHS, ISO9001/CE/ROHS | Number Of Conductors: | ≥ 10, 2, 6 |
| Type: | Coaxial, FTTH 24 Core Optical Fiber Cable, Professional Manufactures Fiber Optic Sma Connector, Bare Optical Fiber, Single-Mode Or Multi-Mode | Product Name: | Fiber Optic Launch Cable, Ftth Drop Cable, 2core FTTH Single Mode Indoor/outdoor Fiber Optic, Armored 2 Core Field Optical Fiber Cable Assembly For Field Operation, 1 2 4 Core Fiber Optic Drop Cable |
| Fiber Count: | 2 Core, 2/4/6/8/12 Core, 1-144 Core, 1 Cores, 1/2/4 Core | Length: | As Your Required, 1KM, 2KM Or Other Requires |
| Jacket Material: | LSZH, PVC, PE, TPU, PVC/LSZH | Operating Temperature: | -55~+85°C, -20℃ To 70℃, -40°C To + 70°C |
| Package: | Plastic Bag, Carton, 1km/roll | Sheath: | MDPE/HDPE, PLENUM, LSZH, PVC, Ect |
| Cable Diameter: | 0.25MM, 2.2±0.07 | Strength Member: | Steel Wire, Metallic Wire, FRP |
| Name: | Ftth Drop Cable Outdoor Fiber Optical Cable, Fiber Optic Patchcord | Strengthen Member: | FRP Or Steel 0.4mm/0.45mm/0.5mm, 1 Steel Wire+ 2 FRP |
| Highlight: | Aerial Adss Fiber Optic Cable,Dielectric Adss Fiber Optic Cable |
||
Product Description
Factory Supply Outdoor Single Mode Single Sheath Aerial Dielectric Adss Fiber Optic Cable
1. Product Description:

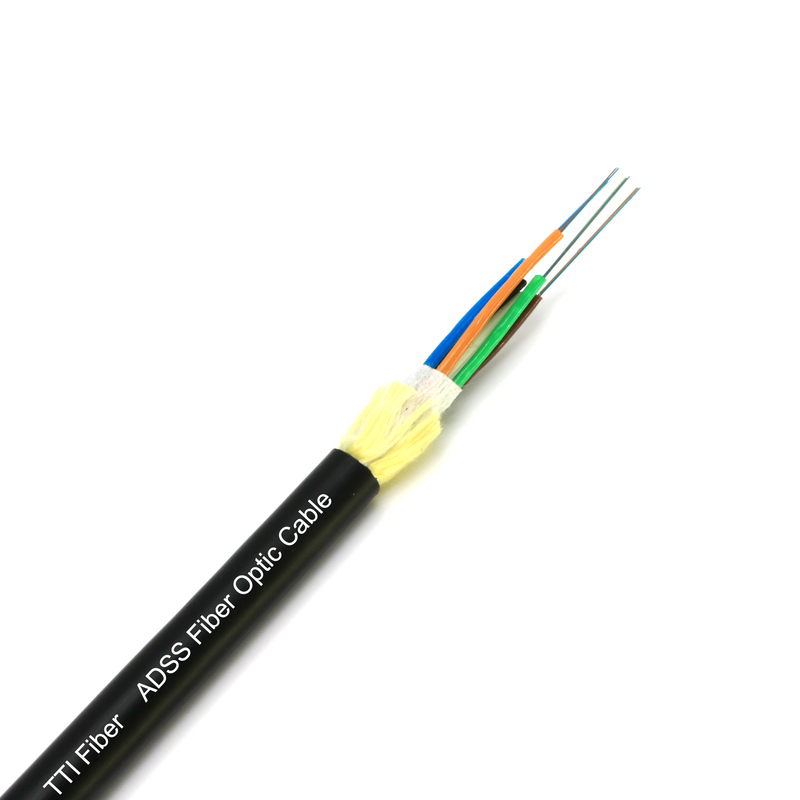

All-dielectric self-support fiber optic cable (ADSS)
ADSS cable is loose tube stranded structure. The optical fiber is 250µm, the loose tube is made of high modulus plastic, which is filled with waterproof compound. In the center of the cable core is a FRP strength member,The loose tube (and the filling rope) is twisted around the central reinforcement core to form a compact and round cable core, and the gap in the cable core is filled with a water blocking filler. The outer of the cable is a polyethylene (PE) inner sheath,then twisted high tensile strength aramid, normally use high-density polyethylene (HDPE) outer sheath or electric tracking (AT) outer sheath.
2. Features:
• All-dielectrical self-supporting aerial fiber optic cable, no metal material in the structure, can be set up without interruption.
• Large number of fiber cores, light weight, can be laying with the power line, saving resources.
• Adopt high tensile strength aramid material to withstand strong tension and prevent cockles and gunshots.
• Small thermal expansion, the variation of the arc of the cable line is small when the temperature changes greatly.
• Can make single jacket or double jacket
• Large span, the maximum span exceeds 1000 meters
• Life expectancy greater than 30 years

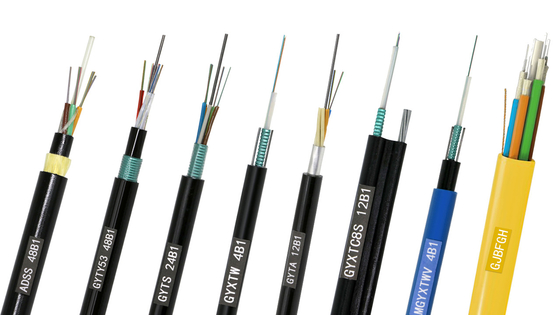

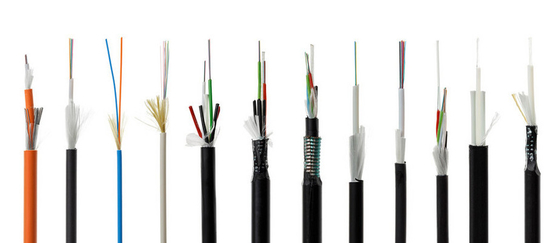

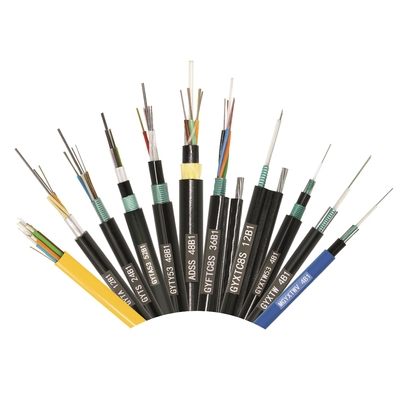

3. Product Display:
4. Technical data:
| Fiber Num. | Outer diameter (mm) | Weight (kg/km) | Tension (N) | Crash loading (N/100mm) | ||
| Short term | Long term | Short term | Long term | |||
| 2-30 | 12.9 | 160 | 3000 | 1000 | 3000 | 1000 |
| 32-60 | 13.4 | 175 | ||||
| 62-72 | 14.1 | 204 | ||||
| 74-84 | 15.4 | 245 | ||||
| 86-96 | 15.4 | 245 | ||||
| 98-120 | 17.2 | 285 | ||||
| 122-144 | 19 | 334 | ||||
5. Performance:
Application: Used for long haul communication and local network
Installation method: burial and duct
Operating temperature: -40°C ~ +70°C
Permisson bent radius Static: 12.5 times O.D.
Dynamic: 25 times O.D.
6. Certification Display:
7. About us:
Shenzhen TTI Fiber Communication Tech. Co., Ltd. Is a high-tech enterprise specialized in fiber optic cable assemblies and optical fiber communication devices production, development and sales.
Our company established a set of strict quality assurance system and obtained ISO9001, ISO4001 international quality system certificate.
Our main products are Fiber optic cable, Fiber optic patch cord, fiber optic pigtail, fiber optic adapter, fiber optic attenuator, PLC splitter, fiber optic patch panel and much more FTTH products.
We not only offer OEM service but also help many partners from all over the world to win in the market with professional technical support, excellent product solution, competitive prices, fast delivery and good service.
Through our quality assurance program we give you outstanding quality of fiber optic cable assemblies. Quality has always made TTI Fiber stand out and it is essential to the company success.
Our key objective is to solve our customers and technical challenges by working in partnership to design and manufacture outstanding products. We strive for 100% customer satisfaction.
TTI Fiber provides qualified technical solutions and immediate service response when you need it the most.We not only sell products. We are offering good service and professional support.
Choose TTI, to make your Internet Expedite!
