GJYRCH SM G652D G657A Steel Wire FTTH Fiber Optic Cable Indoor Outdoor
Product Details:
| Place of Origin: | China |
| Brand Name: | TTI |
| Model Number: | GJYRCH Indoor Fiber Cable |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Package(Surport OEM/ODM) |
| Delivery Time: | 5-8 Work Days |
| Payment Terms: | D/A, D/P, T/T... |
| Supply Ability: | 100000 meters |
|
Detail Information |
|||
| Product Name: | GJYRCH Fiber Optical Cable | Application: | Indoor |
|---|---|---|---|
| Color: | White | Material: | LSZH |
| Fiber Type: | G652D | Length: | Customizted |
| Wavelength: | 1310nm Or 1550nm | Use: | FTTX |
| Quality Control: | 100% Test Before Shipping | Package: | Wooden Ram |
| Highlight: | Outdoor FTTH Fiber Optic Cable,Steel Wire FTTH Fiber Optic Cable,Steel Wire Fiber Optic Cable |
||
Product Description
FTTH GJYRCH Indoor And Outdoor SM G652D G657A Steel Wire Fiber Optic Cable
1. Specification:
The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic.
The tubes are filled with a water-resistant filling compound.
The tube is wrapped with a layer of corrugated steel tape longitudinally. Between the corrugated
steel tape and the loose tube water-blocking material is applied to keep the cable compact
and watertight. Two parallel steel wires are placed at the two sides of the steel tape.
The cable is completed with PE sheath.
| G652D | G655 | 50/125μm | 62.5/125μm | ||
| Attenuation(+20deg C) | @850nm | ≤ 3.0dB/KM | ≤ 3.0 dB/KM | ||
| @1300nm | ≤ 1.0dB/KM | ≤ 1.0 dB/KM | |||
| @1310nm | ≤ 0.36 dB/KM | -- | |||
| @1550nm | ≤ 0.22 dB/KM | ≤0.23dB/km | |||
| Bandwidth(Class A) | @850nm | ≥ 500 MHz-KM | ≥200 MHz-KM | ||
| @1300nm | ≥1000 MHz-KM | ≥600 MHz-KM | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength λcc | ≤1260nm | ||||
2. Feature:
Low insertion loss high return loss
Excellent mechanical endurance
High credibility and stability
Good in repeatability and exchangeability
3. Application:
- Frequent lightning area and anti electric field : The subway, tunnel
- Long-distance communication: Local trunk network & User network
- Duct and direct buried application
- Harsh environment

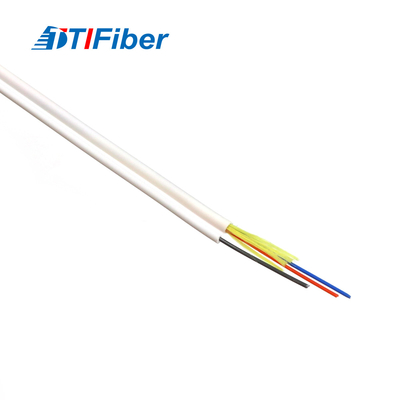

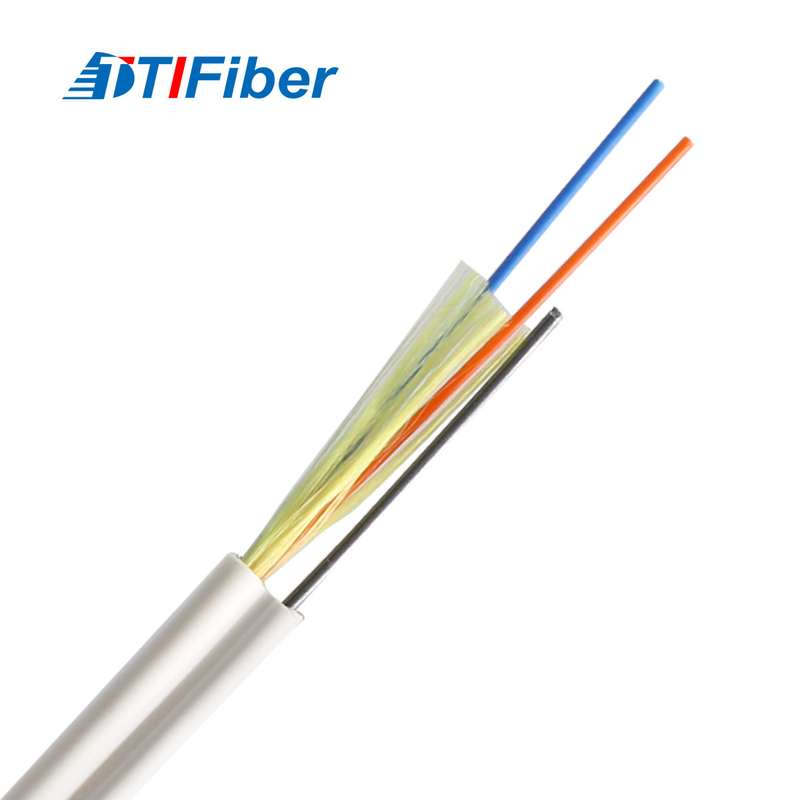

4. Product Picture:
