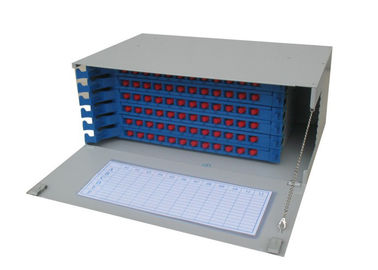

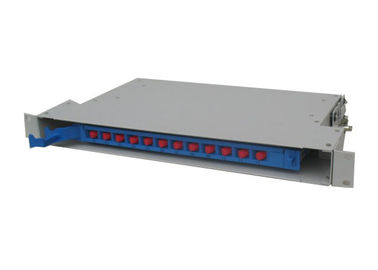

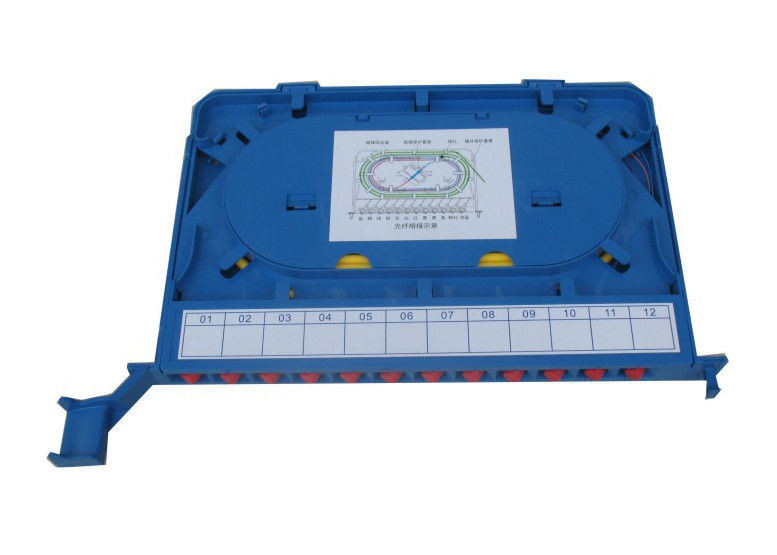

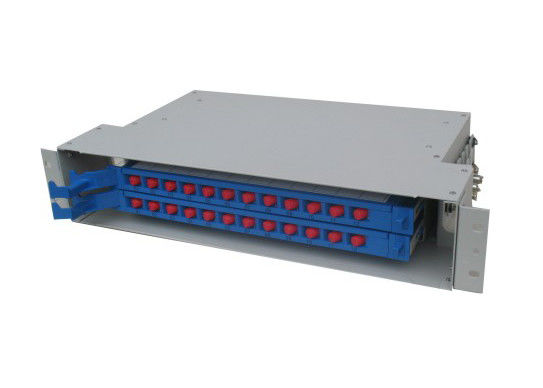

12port Fiber Optic Distribution Box , Welding Distribution Module Tray for ODF Unit Box

Product Description

12port Fiber Optic Distribution Box , Welding Distribution Module Tray for ODF Unit Box

Quick Detail:

1. Height: 1U, 2U, 3U, 4U, 6U
2. Max Capacity: 8pcs splice trays, 96core
3. The Case Body is made by Cold Rolled Steel Sheet with Electrostatic Spraying
4. Welding & Distribution Module Integration(ODF Unit)
5. Can be Install with Adaptors FC, SC, ST, LC…
6. 19” Standard Structure, Rack Mounting

Description:

Fiber optic ODF unit box is used for cable inlet, grounding and fixing and the splicing between the terminal end and pigtail. Users can select unit or ring flange amount according to their practical needs

Feature:

1. It's suitable for ribbon or non-ribbon optical fiber cable.
2. Every tray can be clamped with 12FC/SC/ST adaptors.
3. Applied to various optical fiber distribution frames, distribution cabinets and optical cable cross-connection cabinets.
4. With splice trays in the box and integrate heat sealing and wiring into one.
5. Apply double-sided structured optical fiber splice tray to make full use of the two sides of the board.
6. Can be used in 19'', 23'' standard distribution frame
7. Install adaptors on the face side of optical fiber splice tray in a bayonet way at an oblique angle of 30 degrees to ensure curve radius of optical fiber and prevent eyes from being damaged by laser light at the same time

Application:

1. FTTX (FTTP, FTTH, FTTN, FTTC)
2. Passive Optical Networks
3. Local Area Networks
4. CATV system
5. Test Equipment

Specification:
