Singlemode GYTS Armoured Optical Fiber Cable 24 Cores SM G652D
Product Details:
| Place of Origin: | China |
| Brand Name: | TTI |
| Certification: | YD/T901-2001 and IEC60794-1 |
| Model Number: | GYTS |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden drum |
| Delivery Time: | 5-7working days |
| Payment Terms: | L/C, T/T,Paypal |
| Supply Ability: | 20000m/day |
|
Detail Information |
|||
| Product Name: | GYTS Fiber Optic Cable | Fiber Count: | 24 |
|---|---|---|---|
| Laying Method: | Conduit And Aerial | Temperature Range: | -40℃~ +70℃ |
| Out Diameter: | 10.5~18.8 | Package: | Wooden Drum |
| Jacket: | PE | Strength Member: | Steel Wire |
| Core Type: | Singlemode | ||
| Highlight: | Singlemode GYTS Fiber Optic Cable,GYTS Armoured Optical Fiber Cable,24 Cores Armoured Optical Fiber Cable |
||
Product Description
fibra optica 24cores SM G652D GYTS Armoured Optical Fiber Cable

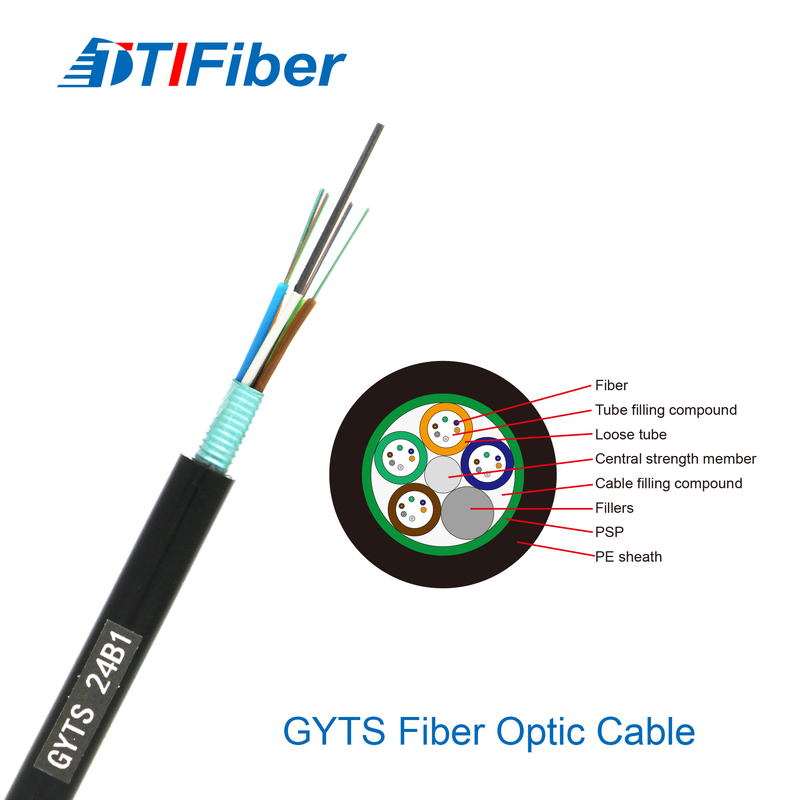

Fiber Optic Cable A: Description:
1) Loose tubes (or some fillers ) stranded around the metal central strength memeber
2) Bound by corrugated longitudinal steel tape with outer PE jacket
3) The tube is made of good temperature property material .A numeber of single or multi-mode fibers double-coated are contained in the loose tube
Fiber Optic Cable B Applications
Suitable for aerial, duct laying method. Long distance and local area network communication.
Fiber Optic Cable C: Specification
| Fiber Count | 2-30 | 32-36 | 38-60 | 62-72 | 74-96 | 98-120 |
| Cable Diameter (mm) | 8.5 | 10.0 | 11.0 | 12.0 | 14.5 | 16.5 |
| Tolerance Range (mm) | ±0.5, or customized | |||||
| Cable Weight (kgs/km) | 100 | 119 | 138 | 155 | 192 | 227 |
| Tensile (N) | Long term | 600 |
| Short term | 1500 | |
| Crush (N/100mm) | Long term | 300 |
| Short term | 1000 | |
| Min. Bending radius (D=Cable diameter) | Dynamic | 20xD |
| Static | 10xD | |
| Temperature Range (℃) | -20～+60 | |

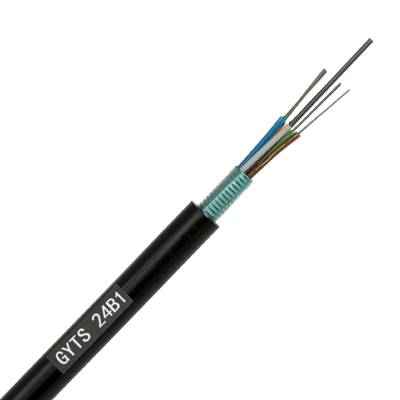

D: Product picture
