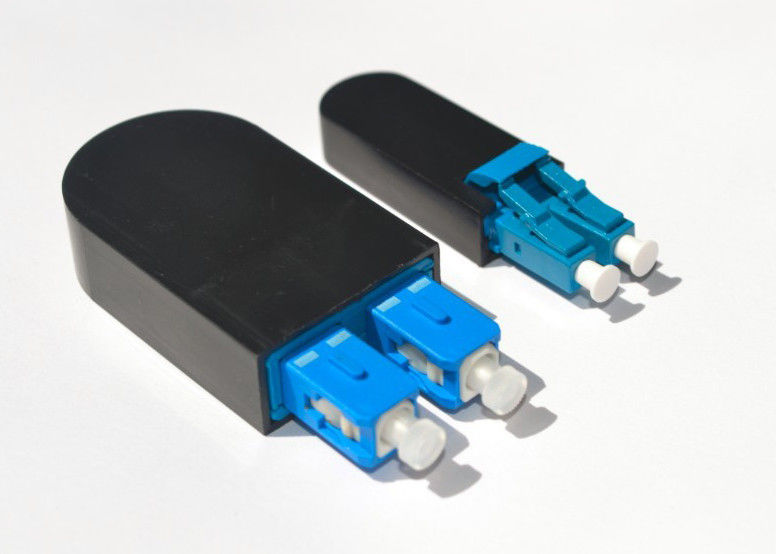

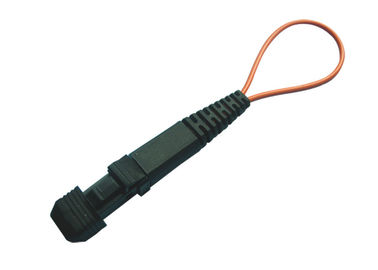

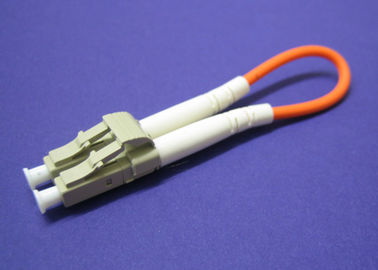

Singlemode MPO optical loopback with Precision Ceramic Ferrule
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | TTI |
| Certification: | ROHS, SGS |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1PCS/PE Bag |
| Delivery Time: | 2-3 days |
| Payment Terms: | T/T, , Monthly settlement |
| Supply Ability: | 7000pcs/Day |
|
Detail Information |
|||
| Highlight: | fibre optic loopback,lc loopback |
||
|---|---|---|---|
Product Description
Singlemode MPO optical loopback with Precision Ceramic Ferrule
Description:
fiber optic loopbacks can be with various jacket types and cable diameters, and they can be with different terminations and length.
Quick Detail:
- Mode: Singlemode: 9/125um
- Cable diameter: 0.9mm, 2.0mm, 3.0mm
- Cable jacket: PVC, LSZH, OFNP, OFNR
- Cable color: Yellow, Orange, Aqua, White, Red, Green
- Insertion loss: ≤0.2dB for SM, ≤0.3dB for MM and SM/APC
- Return loss: ≥ 45 dB for PC, ≥ 50 dB for UPC, ≥ 65 dB for APC and ≥35dB for MM
Features:
- Compact design
- Compatible with Fast Ethernet, Fiber Channel, ATM, and Gigabit Ethernet
- Short wavelength devices
- Molded connector to secure connection
Applications:
- Equipment interconnection
- Device pig-tailling
- Premise networks
- Patch panel applications
- Communications connections
- LoopBack for network components testing
Specification:
| Optical Performance | Single Mode | Multi Mode |
| Insertion Loss | ≤0.20dB | ≤0.30dB |
| Return Loss | ≥45dB(PC) | ≥35dB |
| ≥50dB(UPC) | ||
| ≥60dB(APC) | ||
| Repeatability | ≤0.10dB | |
| Durability | ≤0.2dB typical change,1000 matings | |
| Operating Temperature | - 20 ~ +75°C | |
| Storage Temperature | - 40 ~ +85°C | |
Ordering Information:
Step 1: Connector Type: SC, LC, MTRJ, MPO
Step 2: Connector size: 0.9mm, 2.0mm, 3.0mm
Step 3: Ferrule End-face: UPC, APC
Step 4: Core Type: Single-mode (SM:9/125um), Multimode (MM:50/125um,62.5/125um)
Step 5: Boot color: Black, Blue, White, Red, Yellow, Green, Beige, Aqua
Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
Our service:
- Standard and customized OEM products from small to large quantity are welcome.
- Compliance with global environmental industry with ROHS and SGS standards.
- All products are 100% fully tested by our technical expertise before shipping.
- We provide fiber optic loopbacks according to industry standard.
