0.9 / 2.0 / 3.0mm LC/UPC Duplex Single Mode Pigtail

0.9 / 2.0 / 3.0mm LC/UPC Duplex Single Mode Pigtail

Product Details:

Place of Origin: China
Brand Name: TTI
Certification: CE
Model Number: Fiber Optic Pigtail

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard Package(Surport OEM/ODM)
Delivery Time: 5-8 Work Days
Payment Terms: D/A, D/P, T/T, , ,
Supply Ability: 10000 pieces
Get Best Price Contact Now

Detail Information
Product Name: LC/UPC Duplex Pigtail Connector: FC,LC,SC,ST,MPO,DIN,D4,MU
Diameter: 0.9mm Application: Telecommunication
Insertion Loss: ≤0.2dB Length: 1M/3M/5M/10M/Customization
Material: PVC/LSZH Use: FTTH/FTTA/FTTX
Highlight:

Duplex Single Mode Pigtail

,

LC/UPC Single Mode Pigtail

,

3.0mm Optical Pigtail

Product Description

Fiber optic pigtail LC/UPC Singlemode Duplex 0.9/2.0/3.0mm White Pigtail





Patch cord pigtail, is in the end of a fiber optic cable plus fiber connector, the other end of the original state, to achieve optical network equipment and equipment, equipment and cable between the active connection, simple, convenient and fast. It is one of the essential passive products for optical network construction.


TTI can provide all kinds of patch cord pigtail products; the transmission mode, optical cable type and connector type can be arbitrarily matched. It has the advantages of stable transmission, high reliability and customization; it is widely used in optical network scenarios such as central office, FTTX and LAN etc.



1. Feature



(1) Low insertion loss and back reflection loss

(2) Good echangeability

(3) Good Durability

(4) High temperature stability

(5) Standard: Telcordia GR-326-CORE



2. Application

(1) FTTH, LAN, PON & Optical CATV, Local ring net

(2) Optical fiber communication system

(3) Optical fiber test equipment

(4) Optical fiber sensor

(5) Industry and military application


3. Speciafication


Insertion loss
Singlemode
PC≤ 0.3dB
UPC≤ 0.2dB
APC ≤ 0.18dB
Multimode
PC≤ 0.5dB
UPC≤ 0.3dB
APC ≤ 0.3dB
Return loss
Singlemode
PC≥ 48dB
UPC≥ 50dB
APC ≥ 60dB
Multimode
PC≥ 25dB
UPC≥ 45dB
APC ≥ 50dB
Reaptability
≤ 0.1db
Changeability
≤ 0.2dB
Working temperature
-40 to +80° C
Durability
1000 times
Sustain tension
≥ 100N
Fiber
9/125um , 50/125um, 62.5/125um, etc.
Diameter
0.9mm 2.0mm 3.0mm, etc.
Cable material
PVC, LSZH
Cores
Simplex, duplex, 4cores, 6cores, 8cores, 12cores, etc.




4. Product Details

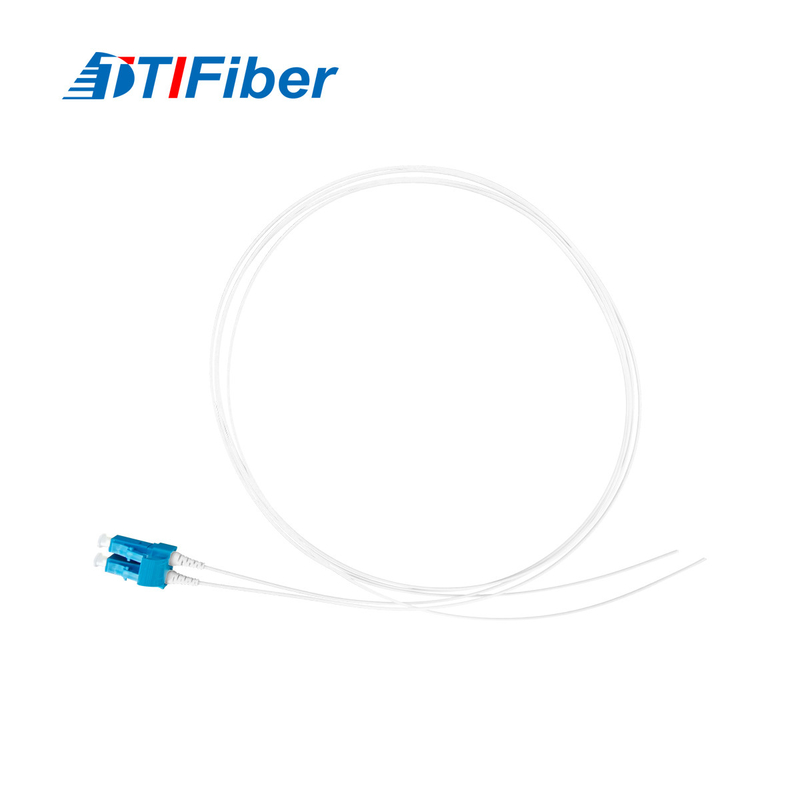

0.9 / 2.0 / 3.0mm LC/UPC Duplex Single Mode Pigtail 0

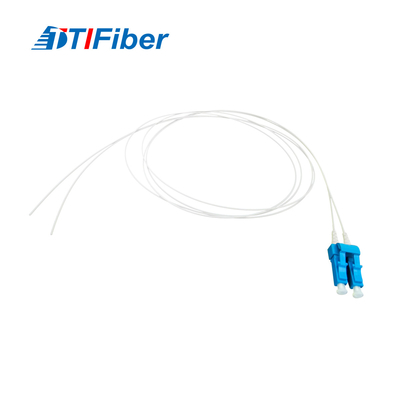

0.9 / 2.0 / 3.0mm LC/UPC Duplex Single Mode Pigtail 1

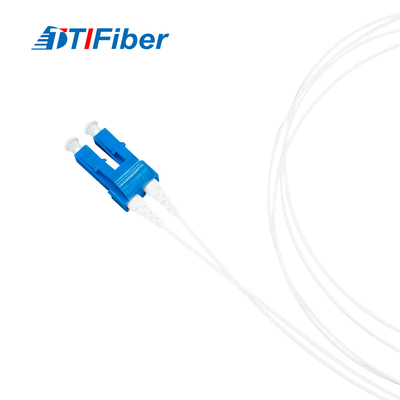

0.9 / 2.0 / 3.0mm LC/UPC Duplex Single Mode Pigtail 2

5. FAQ:



1. Why choose TTI FIBER ?
(1) Professional manufacturer: Low MOQ, free samples are available.
(2) Quality assurance:Stable high quality.
(3) Customers solutions:Quick.
(4) Win-Win Price:Save much costs, bring more benefits for customers.

2. Do you accept OEM,ODM?
Yes, we accept them .

3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.

4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.

5. What's the Payment?

We accept all online payments .
