G652D Fiber Optic Network Cable Singlemode Central Loose Tube Armored GYXTW
Product Details:
| Place of Origin: | China |
| Brand Name: | TTI |
| Certification: | CE/ROHS/ISO9001 |
| Model Number: | GYXTC8S |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden drum |
| Delivery Time: | 5-8 works day |
| Supply Ability: | 100000meters/week |
|
Detail Information |
|||
| Color: | Black | Application: | Telecommunication |
|---|---|---|---|
| Jacket: | PVC LSZH PE | Fiber Count: | 2-288 Cores |
| Length: | 1m/2m/5m/customized | Fiber Type: | G652D/G657A |
| Highlight: | multimode fiber patch cord,fiber optical cable |
||
Product Description

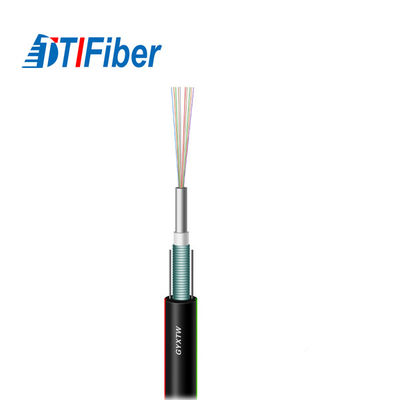

G652D Singlemode optical fiber cable Central Loose Tube Armored Outdoor Cable GYXTW
250μm's fibers are positioned in the central of a loose tube which is made of high modulus plastics and filled with water-resistant filling compound. The tube is wrapped with a layer of the plastic coated steel strip(PSP). Except the tube filling compound, PSP, water-blocking material and the PE sheath, it also has two steel wires in two sides to enhance the crush resistance and flexibility.
|
OPTICAL CHARACTERISTICS
|
||||
|
|
|
G652
|
50/125μm
|
62.5/125μm
|
|
Attenuation
(+20℃)
|
@850 nm
|
|
<=3.0dB/km
|
<=3.3dB/km
|
|
@1300 nm
|
|
<=1.0dB/km
|
<=1.0dB/km
|
|
|
@1310 nm
|
<=0.36dB/km
|
|
|
|
|
@1550 nm
|
<=0.22dB/km
|
|
|
|
|
Bandwidth
(Class A)
|
@850 nm
|
|
>=500 MHz*km
|
>=200 MHz*km
|
|
@1300 nm
|
|
>=1000 MHz*km
|
>=600 MHz*km
|
|
|
Numerical Aperture
|
|
0.200+-0.015NA
|
0.275+-0.015NA
|
|
|
Cable cut-off wavelength
|
<=1260 nm
|
|
|
|
CABLE CHRACTERISTICS
1.Uni-tube gel-filled construction for superior fiber protection.
2.Metallic armor to protect cable from rodent attack and mechanical damage.
3.Embedded steel wire provide desirable tensile strength and crush resistance.
4.Compact, easy to install.
5.UV and waterproof design.
|
Fiber count
|
Nominal
Diameter (mm) |
Nominal
Weight (kg/km) |
Allowable Tensile Load
(N) |
Allowable Crush Resistance(N/100mm)
|
||
|
short term
|
long term
|
short term
|
long term
|
|||
|
2~12
|
8.0
|
90
|
1500
|
600
|
1000
|
300
|
|
14~48
|
9.0
|
110
|
1500
|
600
|
1000
|
300
|
