Ftth Drop Cable Production Line Fiber Optic Wire To Home Steel Armoured Cable
Product Details:
| Place of Origin: | Chinaland |
| Brand Name: | TTI |
| Certification: | CE,ROSH |
| Model Number: | FTTH |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden drum |
| Supply Ability: | 5000 meters per day |
|
Detail Information |
|||
| Color: | Customized | Application: | Telecommunication |
|---|---|---|---|
| Jacket: | LSZH | Conductor: | Copper CCA CCS |
| OEM: | Welcome | Certification: | ISO9001 |
| Highlight: | multimode fiber patch cord,fiber optical cable |
||
Product Description
Hight Quality ftth drop cable production line optical fiber to home steel wire armoured cable
FTTH cable Describution:

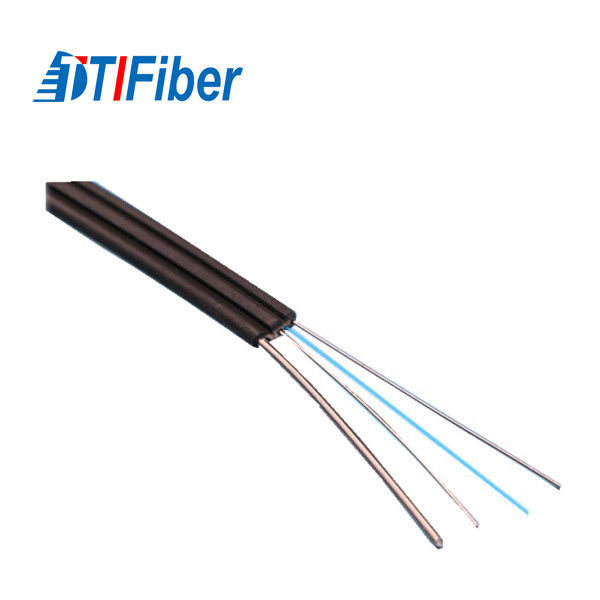

The optical fiber unit is positioned in the centre.Two parallel Fiber Reinforced Plastics(FRP) are placed at the two sides.A steel wire as the additional strenght member is also applied. Then the cable is completed with a black or color LsZH sheath.
FTTH cable Features:
- Compliant with: ANSI,Bekkcore,TIA/EIA,IEC Strandards
- Simplex and duplex available
- With ceramic fettules
- PVC&LSZH cable option
- Low insertion loss and hight return loss
- Excellent repeatability and changeability
- Optical performance 100% factory test
FTTH cable Application:
- All types of fiber cables with different structures
- High performance optical network operating
- High speed optical routes in buildings (FTTx)
- Application in L band
FTTH Cable Construction Parameter:
| Fiber Core | 1 | 2 | 1 | 4 |
| Cable Dimension(mm) | 2.0×5.0 | 2.0×5.0 | 2.0×5.3 | 2.0×5.3 |
| Cable Weight(kg/km) | 9 | 10 | 11 | 12 |
Mechanical & Environmental Performance:
| Max Load (N) | Long Term | 60 | 60 | 60 | 60 |
| Short Term | 120 | 120 | 120 | 120 | |
| Bending Radius(CM) | Dynamic | 30 | |||
| Static | 15 | ||||
