Member Direct Buried Fiber Optical Cable GYFTA53 Non Metallic Strength PE Jacket
Product Details:
| Place of Origin: | China |
| Brand Name: | ODM & OEM |
| Certification: | CE SGS |
| Model Number: | GYFTA53 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden drum |
| Delivery Time: | 6-8working days |
| Payment Terms: | L/C, T/T, ,Paypal |
| Supply Ability: | 5000m/day |
|
Detail Information |
|||
| Item Number: | GYFTA53 | Fiber Count: | 2-288 Core |
|---|---|---|---|
| Installation: | Direct Buried | Application: | LAN Communication |
| Standards: | IEC60794 | Quality Standard: | Telecom Standard |
| Color: | Black | Jacket: | PE |
| Factory: | Yes | Warranty: | 20 Years |
| Highlight: | multimode fiber patch cord,fiber optical cable |
||
Product Description
GYFTA53 Fiber Optical Cable Non-Metallic Strength Member Direct Buried Cable
a:Introduction
The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. FRP locates in the center of core as a non-metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is to protect the cable from water ingress. Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.
b: Feature
1) Excellent mechanical and temperature performance
2) Special tube filling compound ensure a critical protection of fiber and resist the water
3) Loose tube stranding cable core ensures the cable structure stable
4) single steel wire as the central strength member to withstand axial loads
5) aluminum tape longitudinal cover cable core as moisture barrier
6) corrugated steel tape longitudinal cover cable core and provide good crush resistance
c: Application
Long distance and LAN communication

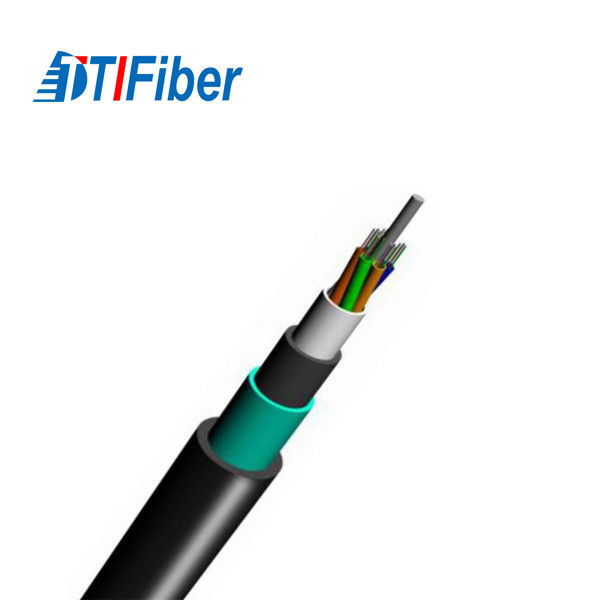

d: Product pictures
