Armoured Underwater Gyta53 Fiber Optic Cable 2-288 Cores Fiber Count Black Color
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | TTI |
| Certification: | CE/ROHS/ISO9001 |
| Model Number: | GYTA |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden drum |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T, , |
| Supply Ability: | 100000meters/week |
|
Detail Information |
|||
| Product: | Fiber Optic Cable | Fiber Type: | GYTA |
|---|---|---|---|
| Jacket: | PVC LSZH PE | Fiber Count: | 2-288 CORES |
| Feature: | Good Mechanical Performance | Application: | Lan Communication |
| Length: | 1m/2m/5m/customized | Color: | Black |
| Highlight: | fiber optical cable,fiber optic network cable |
||
Product Description
Gyta53 Armoured Underwater Fiber Optic Cable On Special Way Cable
Description

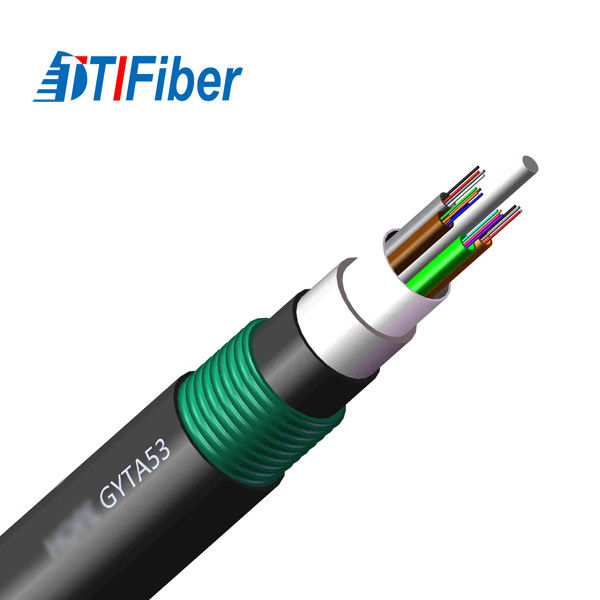

The fibers, 125μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core. which is filled with the filling compound to protect it from water ingress. Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.
| Cable Type | Fiber Count | Tubes | Fillers | Cable Diameter mm | Cable Weight kg/km | Tensile Strength Long/Short Term N | Crush Resistance Long/Short Term N/100mm | Bending Radius Static/Dynamic |
| GYTA53-2-6 | 2-6 | 1 | 5 | 14.5 | 209 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-8-12 | 8-12 | 2 | 4 | 14.5 | 209 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-14-18 | 14-18 | 3 | 3 | 14.5 | 209 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-20-24 | 20-24 | 4 | 2 | 14.5 | 209 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-26-30 | 26-30 | 5 | 1 | 14.5 | 209 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-32-36 | 32-36 | 6 | 0 | 14.5 | 209 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-38-48 | 38-48 | 4 | 1 | 15.4 | 234 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-50-60 | 50-60 | 5 | 0 | 15.4 | 234 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-62-72 | 62-72 | 6 | 0 | 15..9 | 244 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-74-84 | 74-84 | 7 | 1 | 18 | 297 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-86-96 | 86-96 | 8 | 0 | 18 | 297 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-98-108 | 98-108 | 9 | 1 | 19.4 | 338 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-110-120 | 110-120 | 10 | 0 | 19.4 | 338 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-122-132 | 122-132 | 11 | 1 | 21.3 | 392 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-134-144 | 134-144 | 12 | 0 | 21.3 | 392 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-146-216 | 146-216 | 21.3 | 395 | 1000/3000 | 1000/3000 | 10D/20D | ||
Characteristics
- Good mechanical and temperature performance
- High strength looes tube that is hydrolysis resistant
- Special tube filling compound ensure a critical protection of fiber
- Crush resistance and flexibility
- The following measures are taken to ensure the cable watertight
- Steel wire used as the central strength member
- Loose tube filling compound
- 100% cable core filling
- APL moisture barrier
- PSP enhancing moisture-proof
- Water-blocking material
Standards:
GYTY53 cable complies with Standard YD/T 901-2001as well as IEC 60794-1.
Storage/Operating Temperature : -40℃ to + 70℃
