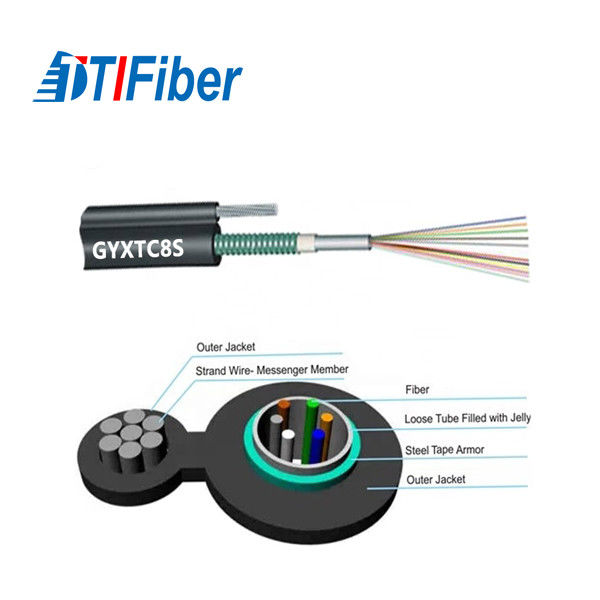

Figure 8 Fiber Optic Cable Steel Wire Stranded Self Supporting Aerial For LAN communication
Product Details:
| Place of Origin: | China |
| Brand Name: | TTI |
| Certification: | CE/ISO9001 |
| Model Number: | GYFTC8S |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden drum |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, T/T,Paypal |
| Supply Ability: | 5000m/day |
|
Detail Information |
|||
| Product Name: | GYFTC8S | Laying Method: | Self-supporting Aerial |
|---|---|---|---|
| Fiber Count: | 2-288 Core | Application: | Long Distance And LAN Communication |
| Standards: | IEC60794 | Temperature Range: | -40~+70 |
| Color: | Black | Outer Sheath: | PE |
| Package: | Wooden Drum | Warranty: | 30 Years |
| Highlight: | multimode fiber patch cord,fiber optical cable |
||
Product Description
Figure 8 Fiber Optic Cable Steel Wire Stranded Self-Supporting Aerial Used For LAN communication
Characteristics
1.Non-metal strength has an excellent anti-electromagnet ability.
2. Loose tube design for good performance.
3. Excellent mechanical and environmental characteristics.
4. Good flexibility and bending performance.
5. Small outer diameter,light weigh easy to installation.
6. 100% cable core filling.
7. Aluminum tape moisture barrier.
Specification
| No. of fibers | 6 | 12 | 24 | 48 | 72 | 96 | 144 |
| No. of tubes | 1 | 2 | 4 | 4 | 6 | 8 | 12 |
| fibers per tube | 6 | 6 | 6 | 12 | 12 | 12 | 12 |
| Filler Rod | 4 | 3 | 1 | 1 | 0 | 0 | 0 |
| Tube diameter (±0.1mm) | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 |
| Thickness of loose tube (±0.05mm) |
0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Outer diameter (±0.5mm) | 5.4X8.6 -15.0 |
5.4X8.6 -15.0 |
5.4X8.6 -15.0 |
5.4X9.8 -16.5 |
5.4X10.8 -17.5 |
5.4X12.2 -19.0 |
5.4X14.9 -22.0 |
| Thickness of out diameter (±0.1mm) |
1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.7 | 1.7 |
| Loose tube | Material | PBT | Color | standard spectrum | |||
| Water blocking system |
Material | Filling gel / Water blocking tape | |||||
| Central strength member |
Material | FRP | Diameter | 1.4(6-48) 2.0(72-144) |
|||
| Mental strength member |
Material | Stranded steel wire | Type | 1.0mm*7 | |||
| Armor | Material | Aluminum tape | |||||
| Gallus | Material | PE | Size (h*w) |
2.5*1.5mm | |||
| Out sheath | Material | PE | Color | Black |
|||
Application
• Adopted to outdoor distribution.
• Suitable for aerial, pipeline laying method.
• Long distance and local area network communication.
