Fiber Optic Cable Singlemode Figure 8 Loose Tube Steel Wire Armored 6-288 Cores
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | TTI |
| Certification: | IEC60794 |
| Model Number: | GYXTC8S |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | package with wooden drum |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T, L/C,Paypal |
| Supply Ability: | 2000m/day |
|
Detail Information |
|||
| Product Name: | GYXTC8S | Fiber Count: | 6-288 Cores |
|---|---|---|---|
| Laying Method: | Self-surpting Aerial | Temperature Range: | -40~+70 |
| Application: | LAN Communication | Standard: | IEC60794 |
| Package: | Wooden Drum | Jacket: | PE Sheath |
| Core Type: | Singlemode | Color: | Black |
| Highlight: | fiber optic network cable,fiber optical cable |
||
Product Description
Fiber Optic Cable Singlemode Figure 8 Loose Tube Steel Wire Armored Cable
Description

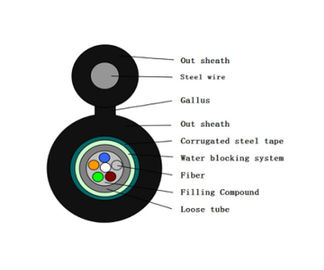

The fibers, 250μm, are positioned in a loose tube made of PBT, the tubes are filled with a water-resistant filling compound. Loose tubes filled with water proof compound to ensure compact and longitudinally water blocking ,this part of cable accompanied with the steel wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure.
Characteristics
· High tensile strength of stranded wires meet the requirement of self-supporting
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· The following measures are taken to ensure the cable watertight:
· Loose tube filling compound
· 100% cable core filling
· steel tape moisture barrier
Specification
| Fiber count | 12F | |||||
| SM fiber | Fiber type | G652D | Concentricity error | ≤0.5um | ||
| MFD | 8.6～9.8um | Cladding non-circularity | ≤0.7% | |||
| Cladding diameter | 124.8±0.7um | Fiber color | standard spectrum | |||
| Loose tube | Material | PBT | Diameter | 2.2±0.1mm | ||
| Water blocking system | Material | Water blocking tape | ||||
| Armor | Material | Corrugated steel tape | ||||
| Mental strength member | Material | steel wire | Diameter | 1.6mm | ||
| Outsheath | Material | MDPE | ||||
| Diameter | 3.8mmx7.5mm(±0.4)-12.5mm(±1) | |||||
| Tensile strength | Long term(N) | 600N | ||||
| Short term(N) | 1500N | |||||
| Crush load | Long term(N) | 600N/100mm | ||||
| Short term(N) | 1500N/100mm | |||||
| Bending radius | Dynamic | 20D | ||||
| Static | 10D | |||||

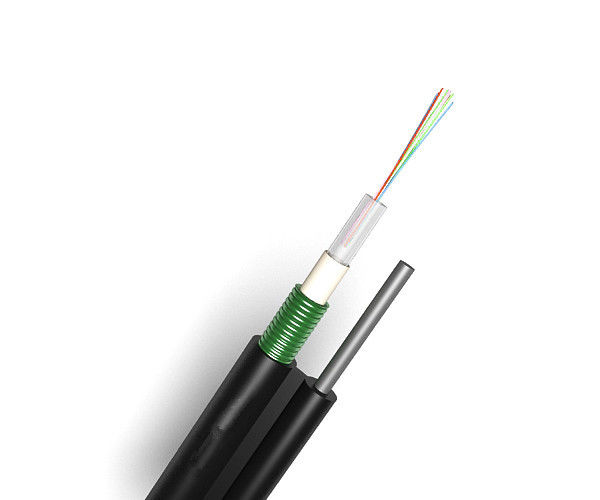

Product pictures
