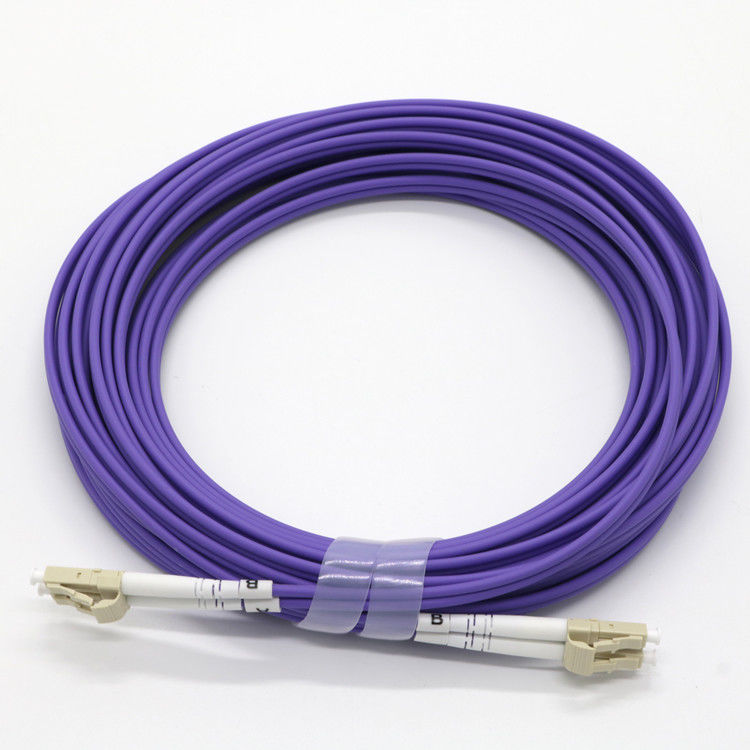

OM4 Multimode Duplex Fiber Optic Patch Cord LC / UPC Polishing PVC LSZH Jacket
Product Details:
| Place of Origin: | China |
| Brand Name: | TTI |
| Certification: | CeROHS |
| Model Number: | LC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PE BOXES |
| Payment Terms: | , T/T, D/A, |
| Supply Ability: | 10000 Pieces/Day |
|
Detail Information |
|||
| Name: | Fiber Patch Cord | Connector: | LC-LC |
|---|---|---|---|
| Polishing: | UPC | Jacket: | PVC LSZH |
| Fiber: | MM | Application: | FTTH FTTB FTTX Network |
| Cable Type: | Duplex | Color: | Customized |
| Highlight: | fiber optic network cable,fiber optical cable |
||
Product Description
OEM OM4 Multimode Duplex Fiber Optic Patch Cord LC / UPC
Product Description
Fiber optic patch cords are used to jump from the device to the fiber optic cabling link. There is a thick protective layer, generally used in the optical terminal and the terminal box between the connection, used in optical fiber communication systems, fiber access network, optical fiber data transmission and LAN and other areas.RE-1999 requirements.
Features
- Insert-pull, key-oriented coupling mechanism which allows high repeatable, low-loss connection
- Simplex ,Duplex and Multi-core accessories for standard or customized structure.
- Comply with Telcordia GR-326-CORE Specification
- The material of plastic plug comply with the request of UL94V-O And Standard of RoHS
-
Boots in a variety of colors
Application:
Telecommunication
Computer networks
CATV networks
Active device termination
Instrumentation
Specification:
| Specification | Unit | FC, SC, LC/Armored Cable | ST, MU | MT-RJ, MPO | |||||||||
| SM | MM | SM | MM | SM | MM | ||||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | ||||
| Insertion loss | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ||
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ||
| Wavelength | nm | 850,1310 | 850,1310 | 850,1310 | |||||||||
| Interchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | |||||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | |||||||||
| Operating temperature | °C | -40~75 | -40~75 | -40~75 | |||||||||
| Storage temperature | °C | -45~85 | -45~85 | -45~85 | |||||||||
| Cable diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | |||||||||
Order Information:
| LC/UPC-LC/UPC-OM4-SX-2.0mm-1M | ||||||||||||||||
| LC | / | UPC | — | LC | / | UPC | / | OM4 | — | DX | / | 2.0 | — | 1M | ||
| 1 | 2 | 3 | 2 | 4 | 5 | 6 | 7 | |||||||||
| 1 | Connector#1: LC, SC, FC, ST, DIN, D4, MU, MTRJ, etc. | |||||||||||||||
| 2 | Lapping Way: UPC&APC (For MTRJ, F=Female, M=Male) | |||||||||||||||
| 3 | Connector#2: LC,SC,FC,ST,DIN,D4,MU,MTRJ,Pigtail,etc. | |||||||||||||||
| 4 | Cable Type: SM(9/125μm) ,MM(50/125μm & 62.5/125μm), OM3, OM4 | |||||||||||||||
| 5 | Fiber Number: SX(Simplex) or DX(Duplex), 2/4/6/8 core... | |||||||||||||||
| 6 | Cable Diameter: 2.0=Ø2.0mm, 3.0=Ø3.0mm, 0.9=Ø0.9mm, etc. | |||||||||||||||
| 7 | Cable Length: 1m, 2M...(Length in meter) | |||||||||||||||
