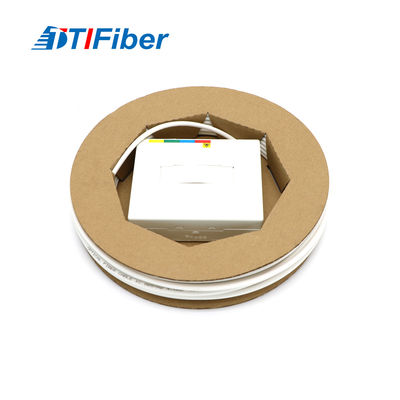

Wall Mounted FTTH Terminal Box With Drop Cable SC/APC
Product Details:
| Place of Origin: | China |
| Brand Name: | TTI |
| Certification: | CE |
| Model Number: | Terminal Box |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Package(Surport OEM/ODM) |
| Delivery Time: | 5-8 Work Days |
| Payment Terms: | D/A, D/P, T/T, , , |
| Supply Ability: | 10000 pieces |
|
Detail Information |
|||
| Product Name: | OTO Terminal Box | Connector: | SC |
|---|---|---|---|
| Number Of Port: | 2 | Installation: | Wall-Mounted |
| Material: | ABS/PC/SMC | Length: | Customization |
| Working Temperature: | -40℃ ~ +80℃ | Use: | FTTH/FTTA/FTTX |
| High Light: | Wall Mounted FTTH Terminal Box,FTTH Terminal Box With Drop Cable,Wall Mounted FTTH Distribution Box |
||
Product Description
Optical Cable Wall Mount Terminal Box Ftth Box With Drop Cable SC/APC
FRB-4C series fiber cassette box is able to hold up to 4 subscribers.It is used as a termination point for the drop cable to connect with patch cable in FTTH indoor application.It intergrates fiber splicing,termination,storage and cable connection in one solid protection box.
1. Feature
1. Dust-proof design with IP-45 Protection level.
2. Intergrated with splice cassette and cable management rods.
3. Manage fibers in a reasonable fiber radius condition.
4. Easy to maintain and extend the capacity.
5. Suitable for the fusion splice or mechanical splice.
6. Embedded type surface, easy for installation and removal.
7. 4-8 ports cable entrance for patch cable.
3. Speciafication
|
Item
|
Parameters
|
|
Scope of application
|
3.0*2.0mm drop cable or indoor cable
|
|
Fiber cladding diameter
|
125um(G652&G657)
|
|
Fiber diameter
|
250um&900um
|
|
Fiber type
|
SM&MM
|
|
Tensile strength
|
>50N
|
|
Operating temperature
|
-40~+85 degree
|
|
Connecting Adapter
|
SC/LC
|
|
Insertion loss
|
<0.2db
|
|
Return loss
|
>50db(UPC),>60db(APC)
|
4. Product Details
